Build a lightweight O gauge layout

By Kent Johnson | June 1, 2011

| Last updated on January 15, 2021


Download this track plan from Classic Toy Trains.

Email Newsletter

Get the newest photos, videos, stories, and more from Trains.com brands. Sign-up for email today!

CTT-G0106_ASGAUGE
CTT-G0106_AOGAUGE

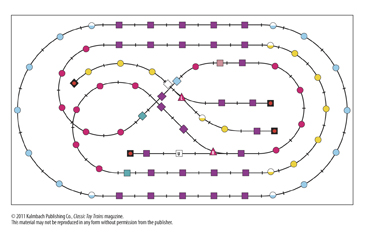

Layout designer: Kent Johnson
Scale: O
Layout size: 5 x 9 feet

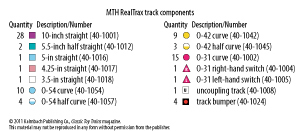

Track type: MTH RealTrax
Minimum curve: O-31

Originally appeared as an S gauge track plan in the January 2006 issue of Classic Toy Trains. The plan was redrawn incorporating MTH RealTrax track components. Be sure to account for the changes in height required at the overpasses and a slight increase in the grades.
