How To Track Plan Database A small, simple, and amazingly sensible plan

A small, simple, and amazingly sensible plan

By Angela Cotey | June 1, 2011

| Last updated on January 20, 2021




Email Newsletter

Get the newest photos, videos, stories, and more from Trains.com brands. Sign-up for email today!

CTT-I0506_APLAN

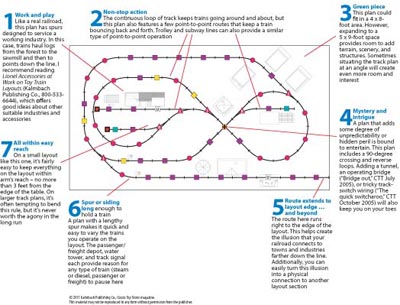

CTT-I0506_ASYMBOLPLAN

Layout designer: Kent Johnson, for the May 2006 issue of Classic Toy Trains.

Scale:
O

Layout size:
5 x 9 feet

Track type:
Lionel tubular track

Minimum curve:
O-31



See a PDF version of this track plan by clicking here.

See a PDF version of the schematics by clicking here.
