Burlington Northern caboose prototype: Car no. 11711

By Cody Grivno | May 5, 2022

| Last updated on May 6, 2022

The caboose that set the standard for two groups of Frisco homebuilt cars

Email Newsletter

Get the newest photos, videos, stories, and more from Trains.com brands. Sign-up for email today!

Burlington Northern caboose prototype: If you’ve been involved with model railroading for a while, you’ve most likely heard the expression “There’s a prototype for everything.” On my way to the National Model Railroad Association Thousand Lakes Region convention in Grand Forks, N.D. back in 2004, I made a stop in Hillsboro, N.D. The community of approximately 1,600 is located halfway between Grand Forks and Fargo on the eastern side of the Peace Garden State. Neatly displayed in a park on South Main Street next to the BNSF Railway mainline was Burlington Northern (BN) caboose no. 11711. But this wasn’t just another caboose. It was the prototype.

Green and yellow caboose on display in a park.
Burlington Northern no. 11711, on display in a park in Hillsboro, N.D., was the prototype for two batches of Frisco cabooses built from Pullman-Standard 40-foot PS-1 boxcars. Cody Grivno photo

Finding the prototype: From boxcar to rock star

In 1972, Frisco found itself in need of more cabooses. With options from car builders proving too costly, the railroad did something it hadn’t done in nearly three decades, build its own cars. Shop forces at Frisco’s Consolidated Mechanical Shops (CMS) in Springfield, Mo., were tasked with constructing a low-cost, contemporary caboose that could be used in road service. The solution? Convert 40-foot boxcar no. 17887, a Pullman-Standard product built in May 1952, into a caboose.

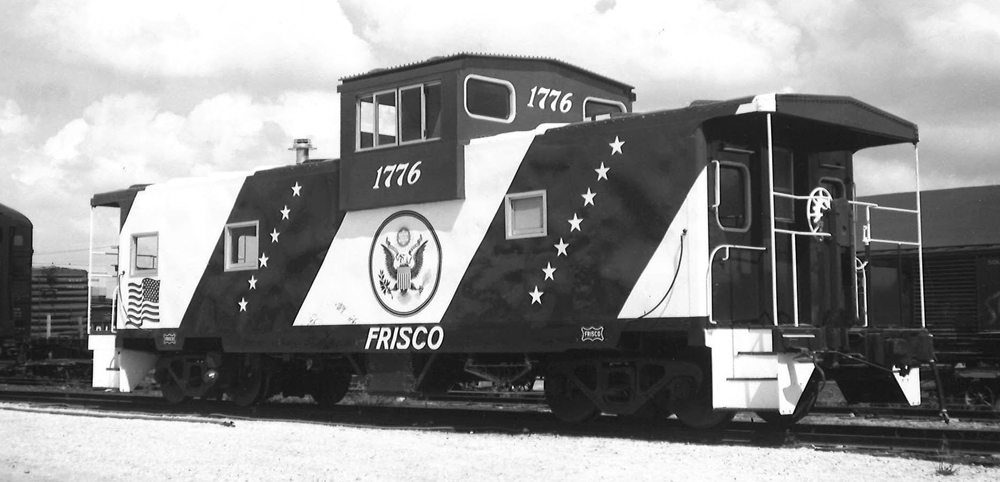

Black-and-white photo of wide-cupola caboose painted for American Revolution Bicentennial.
Recently completed St. Louis-San Francisco (Frisco) wide-cupola caboose no. 1776 sits in the yard at Springfield, Missouri, on August 13, 1972. Bruce D. Barrett photo

Around the time the boxcar was being turned into a caboose, Frisco; Atchison, Topeka & Santa Fe; and Seaboard Coast Line began a run-through service between Richmond, Va., and Richmond, Calif. To promote the service, a special train painted in American Revolution Bicentennial colors (four years before the big celebration in 1976) was assembled. The train was led by Seaboard Coast Line General Electric U36B no. 1776. Santa Fe contributed a pair of baggage cars for use as display cars. Frisco provided its recently finished boxcar-turned-caboose. It rolled out of Springfield in August 1972 painted red, white, and blue. To tie in with the rest of the train, the caboose was numbered 1776. In Robert C. Del Grosso’s Burlington Northern Railroad Cabooses 1970-1995 (Great Northern Pacific Publications, 2006), it notes that the 1776 was built for $22,432.

Black-and-white photo of locomotive, two baggage cars, and caboose painted in American Revolution Bicentennial colors.
Seaboard Coast Line General Electric U36B no. 1776, two Santa Fe baggage cars, and Frisco caboose no. 1776 were on display in Barstow, Calif., in November 1972. Joe McMillan photo

Finding the prototype: More cabooses, a merger, and new paint

The prototype caboose proved a success, leading Frisco to convert more boxcars into cabooses. The 1700-series cars (1700-1725) were constructed between February 1973 and November 1974. The 1400-series cabooses (1400-1442) were built from February 1973 to October 1976.

In 1978, the 1776 traded in its patriotic colors for Frisco’s Mandarin Orange and white. It retained its original number after being repainted.

In 1980, Frisco merged with BN. The 1776 was renumbered BN 11711. It retained its Frisco colors until February 1984, when it was repainted in BN’s Cascade Green and yellow caboose scheme.

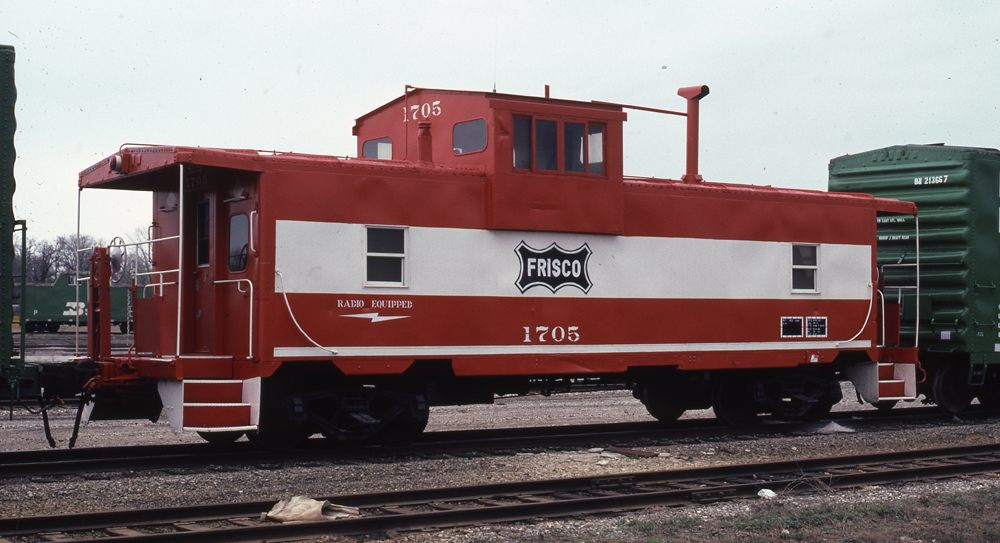

Photo of wide-cupola caboose painted Mandarin Orange and white.
Frisco caboose no. 1705, which started life as 40-foot boxcar no. 18442, was built in April 1973. It’s shown in the Mandarin Orange and white scheme at Springfield, Mo., in March 1982. Jim Hediger photo

Finding the prototype: Happy retirement

With cabooses fading from the railroad scene, BN retired the 11711 in October 1986. It was spared the scrapper’s torch and moved to Hillsboro, approximately 800 miles north of the where it was built.

When I photographed the caboose in 2004, the 11711 was still in the paint applied 20 years earlier. After two decades in the elements, the green and yellow paint had faded and started to peel. I grabbed a small chip of green and yellow paint off the ground for reference. As you can see in the photo, dark blue and Mandarin Orange paint is visible under the yellow.

In February 2014, BNSF Railway donated $10,000 to help repaint the caboose. A Google Street View image from September 2021 shows that the new paint is holding up well.

The next time you pass through a community and see a static piece of railroad equipment, stop and take a look. You never know where might find the prototype.

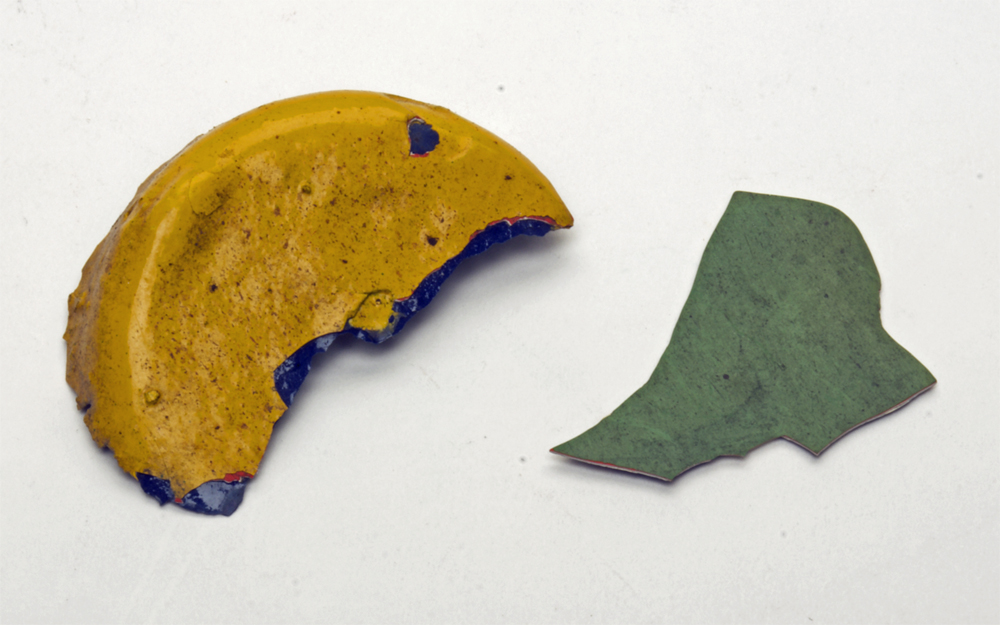

Photo of green and yellow paint chips on white background.
Cody Grivno found these paint chips on the ground by BN caboose no. 11711. Notice the blue and Mandarin Orange paint under the yellow. Cody Grivno photo
