Baltimore harbor District

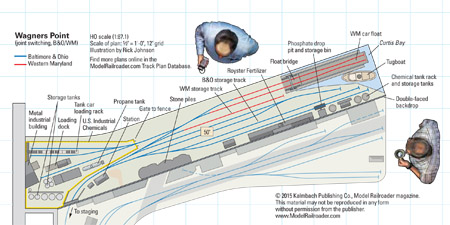

HOscaleWagnersPointBaltimoreHarborDistrict
Wagners Point (Updated from the December 2015 issue)

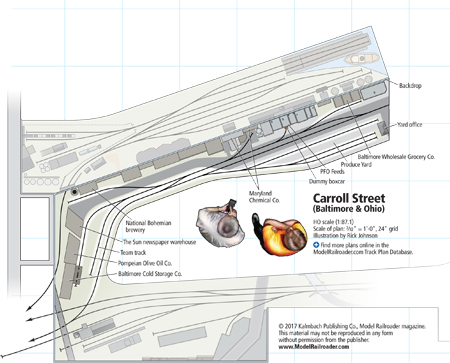

HOscaleCarrollStreetontheBaltimoreHarborDistrict
Carroll Street on the Baltimore Harbor District (Update from the October 2017 issue)

Name: Baltimore Harbor District
Layout designer: Paul Dolkos
Scale: HO (1:87.1)
Size: 17 x 29 feet (in two rooms)
Prototypes: Baltimore & Ohio, Canton RR, Pennsylvania RR, and Western Maryland
Locale: Baltimore
Period: 1955
Style: linear walkaround
Mainline run: not applicable
Minimum radius: 24″, except 18″ and less on some spurs
Minimum turnout: no. 6
Maximum grade: 2.5 percent leaving staging, otherwise level

Originally appeared in Model Railroad Planning 2010.
Carroll Street originally appeared in the October 2017 Model Railroader.

Click on the links to download PDFs of these track plans.

25 thoughts on “HO scale Baltimore Harbor District
