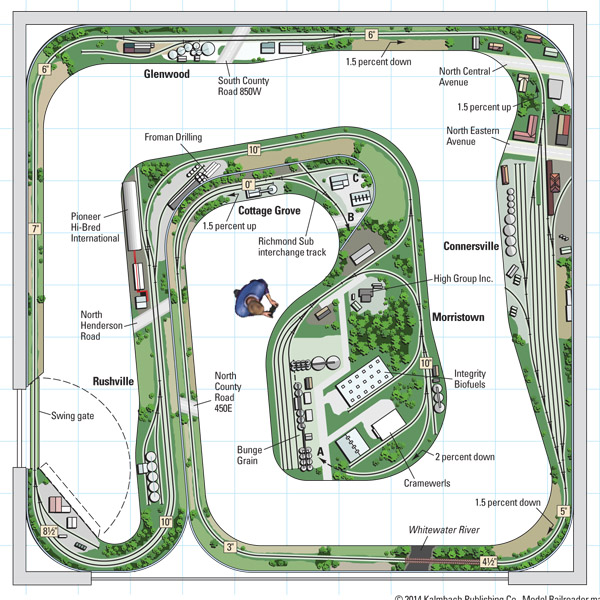

Name: CSX Indianapolis Sub
Layout designer: Robert W. Sprague
Scale: HO (1:87.1)
Size: 21 x 21 feet
Prototype: CSX Indianapolis Subdivision
Locale: Indiana
Era: present day (could be backdated to pre-2000)
Style: walk-in
Mainline run: 142 feet
Minimum radius: 30″ (main), 20″ (branch)
Minimum turnout: no. 6
Maximum grade: 1 percent (main), 2 percent (to middle staging)
Layout designer: Robert W. Sprague
Scale: HO (1:87.1)
Size: 21 x 21 feet
Prototype: CSX Indianapolis Subdivision
Locale: Indiana
Era: present day (could be backdated to pre-2000)
Style: walk-in
Mainline run: 142 feet
Minimum radius: 30″ (main), 20″ (branch)
Minimum turnout: no. 6
Maximum grade: 1 percent (main), 2 percent (to middle staging)
Originally appeared in the November 2014 Model Railroader. Click on the link to download the PDF of this track plan.
