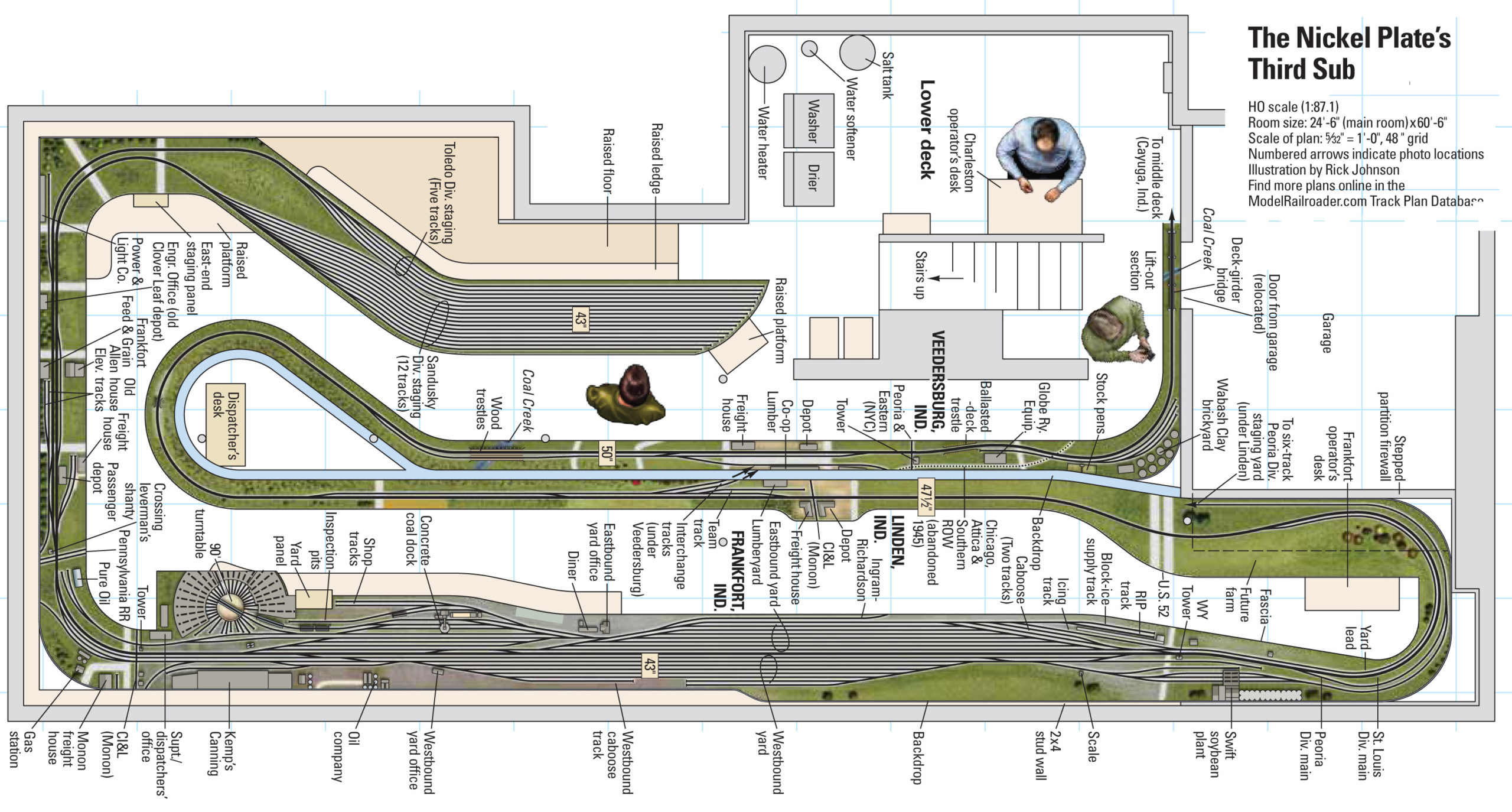

Name: Nickel Plate Road, St. Louis Division
Layout designer: Tony Koester
Scale: HO (1:87)
Size: 24′-6″ x 60′-6″
Theme: high-speed flatlands railroading
Locale: west-central Indiana, east-central Illinois
Era: fall 1954
Style: multi-deck
Mainline run: 500 feet
Minimum radius: 42″
Minimum turnout: no. 6 (yard), no. 8 (main)
Maximum grade: 1.5 percent
Originally appeared in the December 2014 Model Railroader. Click on the link to download the PDF of this track plan.
