Name: Maine Central
Layout designer: Don Sauret
Scale: HO (1:87.1)
Size: 11 x 19 feet
Prototype: Maine Central
Locale: freelanced New England
Era: transition era
Style: around-the-walls
Mainline run: 150 feet
Minimum radius: 30″ (main), 22″ (engine terminal lead)
Minimum turnout: no. 5 (yard), no. 6 (main)
Maximum grade: 2.2 percent
Layout designer: Don Sauret
Scale: HO (1:87.1)
Size: 11 x 19 feet
Prototype: Maine Central
Locale: freelanced New England
Era: transition era
Style: around-the-walls
Mainline run: 150 feet
Minimum radius: 30″ (main), 22″ (engine terminal lead)
Minimum turnout: no. 5 (yard), no. 6 (main)
Maximum grade: 2.2 percent
Originally appeared in the January 2013 Model Railroader.

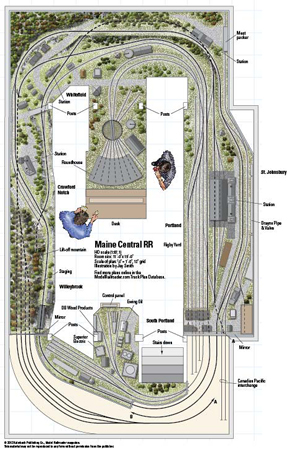

Click on the link to download the PDF of this track plan.
