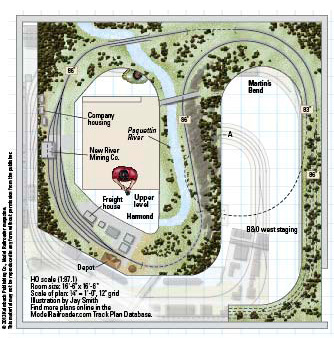

Name: Port Trenton, Baltimore & Ohio Paquettin Division (2013, original version)
Layout designer: Mike Tricker
Scale: HO (1:87.1)
Size: 16′-6″ x 16′-6″
Prototype: Baltimore & Ohio
Locale: Appalachian Mountains and New Jersey waterfront
Style: partial mushroom
Era: early to mid-1950s
Mainline run: 78 feet (branchline run: 33 feet)
Minimum radius: 30″ (main line), 15″ (waterfront tracks)
Minimum turnout: no. 6 (main line), no. 4 (waterfront)
Maximum grade: 2 percent (main line), 2.5 percent (helix to lower level)
Originally appeared in the June 2013 Model Railroader. Click on the link to download the PDF of this track plan.
