Track plan at a glance
Name: Salt Lake Southern
Scale: HO (1:87.1)
Size: 26′-6″ x 40′-0″
Prototype: freelanced and Chicago & North Western
Period: 1995

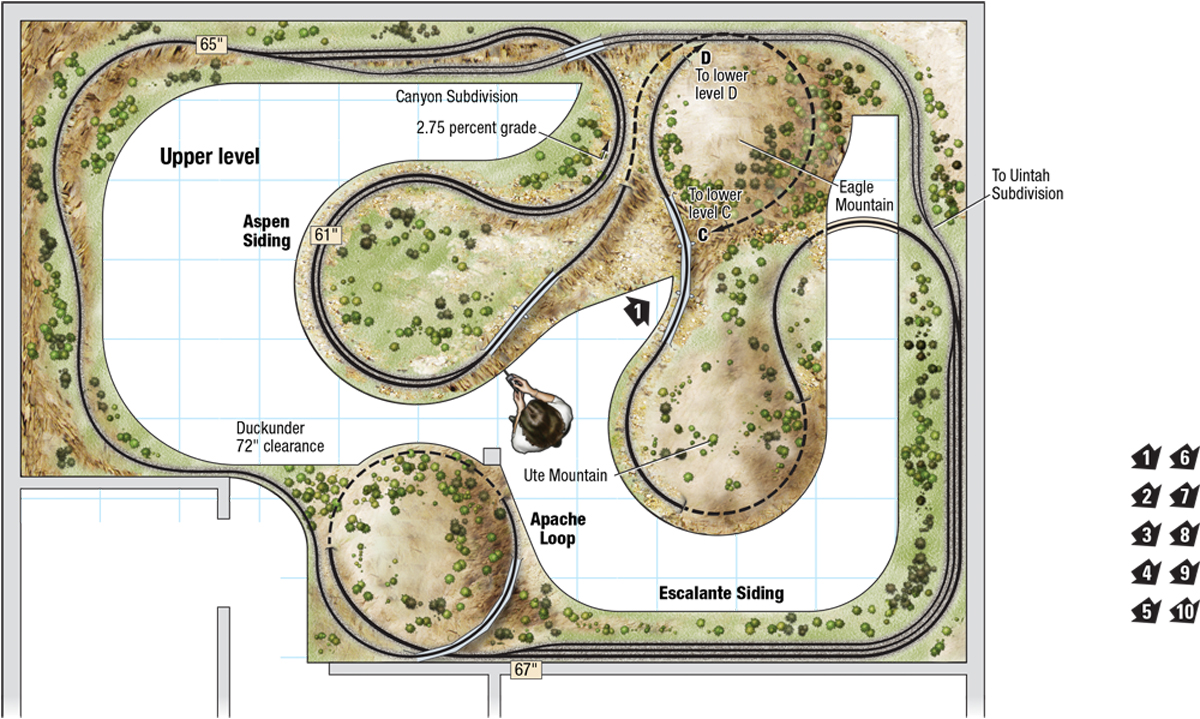

Style: double deck with helixes
Mainline run: 325 feet
Minimum radius: main line, 30″; branch line 22″
Minimum turnout: main line no. 6, branch line no. 4
Maximum grade: 2.75 percent
Originally appeared in the December 2005 issue of Model Railroader.
Name: Salt Lake Southern
Scale: HO (1:87.1)
Size: 26′-6″ x 40′-0″
Prototype: freelanced and Chicago & North Western
Period: 1995
Style: double deck with helixes
Mainline run: 325 feet
Minimum radius: main line, 30″; branch line 22″
Minimum turnout: main line no. 6, branch line no. 4
Maximum grade: 2.75 percent
Originally appeared in the December 2005 issue of Model Railroader.
Click on the link to download a PDF of this track plan
Somebody should contact Gary and see if they can get an updated version of this trackplan. I have been to his layout before and operated on it and he has torn down %80 of what is on this plan and rebuilt it! The two yards in the left corners are the only original parts still left.
