The On30 Owl Cove Lumber Co. layout

By Mitch Horner | July 10, 2024

See the forest — and the trains — for the trees on this On30 layout

Email Newsletter

Get the newest photos, videos, stories, and more from Trains.com brands. Sign-up for email today!

Facts and features

Name: Owl Cove Lumber Co.
Scale: On30 (1:48, 30″ narrow gauge)
Size: 6 x 40 feet
Prototype: freelanced
Locale: Washington’s Northern Cascades
Era: 1930s
Style: around-the-walls
Mainline run: 26 feet
Minimum radius: 18″
Minimum turnout: No. 4
Maximum grade: 6%
Benchwork: L-girder
Height: 40″
Roadbed: cork
Track: code 83 handlaid and flextrack
Scenery: hardshell
Backdrop: hand-painted on walls
Control: NCE Digital Command Control

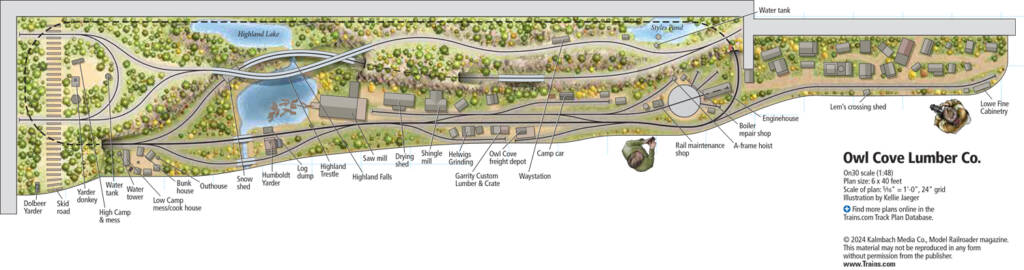

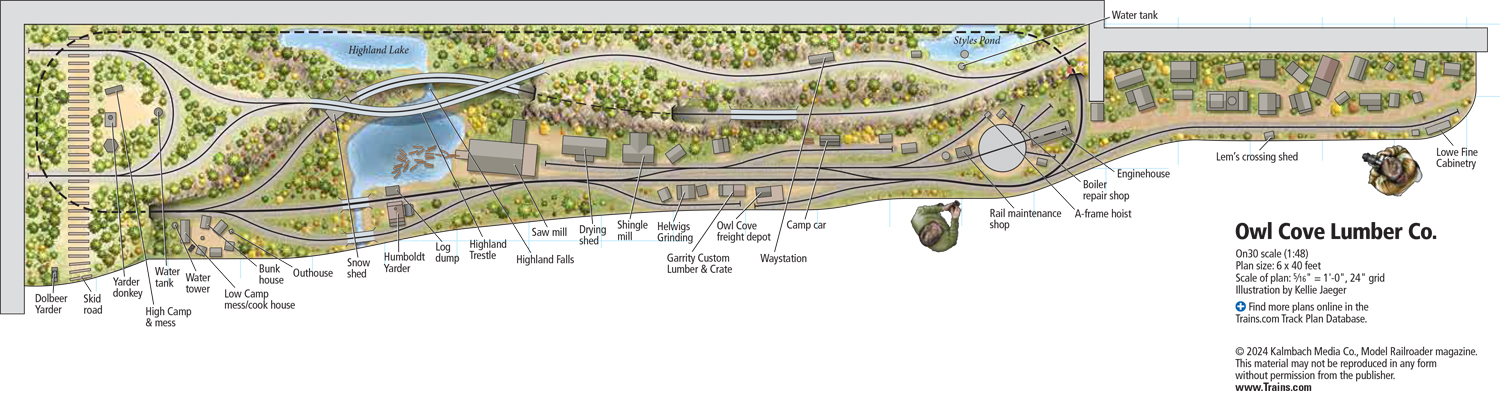

A model railroad track plan for the Owl Cove Lumber Co layout
