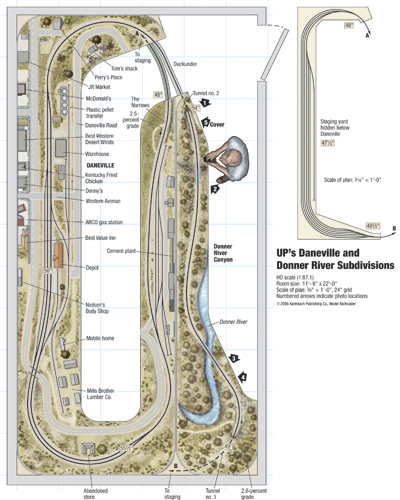

Track plan at a glance
Name: UP’s Daneville and Donner River Subdivisions
Scale: HO (1:87)
Size: 11′-6″ x 22′-0″
Prototype: Union Pacific, with Burlington Northern Santa Fe trackage rights
Period: present
Mainline run: 59 feet (excluding staging)
Minimum radius: 33″
Minimum turnout: No. 8 (main) and no. 6 (sidings and yards)
Maximum grade: 2.6 percent
Name: UP’s Daneville and Donner River Subdivisions
Scale: HO (1:87)
Size: 11′-6″ x 22′-0″
Prototype: Union Pacific, with Burlington Northern Santa Fe trackage rights
Period: present
Mainline run: 59 feet (excluding staging)
Minimum radius: 33″
Minimum turnout: No. 8 (main) and no. 6 (sidings and yards)
Maximum grade: 2.6 percent
Originally appeared in the November 2006 issue of Model Railroader. Also appeared in 102 Realistic Track Plans.
Click here to download a PDF of this track plan
Click here to download a PDF of this track plan
