Yosemite Valley RR

By Angela Cotey | August 13, 2007

| Last updated on January 20, 2021

Download this track plan from Model Railroader

Email Newsletter

Get the newest photos, videos, stories, and more from Trains.com brands. Sign-up for email today!

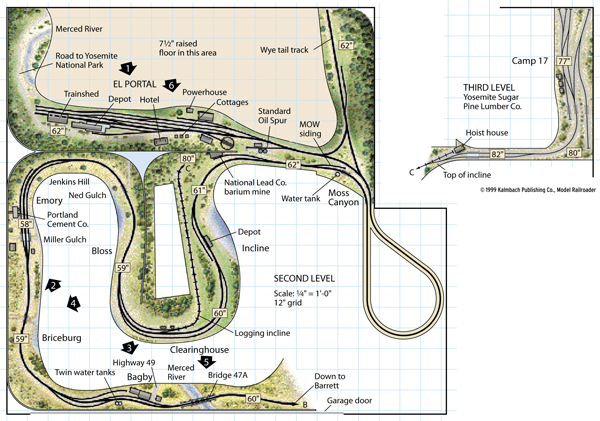

Track plan at a glance
Name: Yosemite Valley RR
Scale: HO (1:87)
Size: 20 x 20 feet
Prototype: Yosemite Valley RR
Period: August 1939
Style: multideck along the walls with peninsula
Mainline run: 112 feet
Minimum radius: 22″ with spiral easements
Minimum turnout: no. 5, all controlled with slow-action switch motors
Maximum grade: 2.3 percent
Originally appeared in the January 2000 issue of Model Railroader.
Click on the link to download a PDF of this track plan
