A popular prototype. The SW1500 was produced from July 1966 to January 1974. During that time, EMD built 808 of the end-cab switchers. The locomotive uses the same carbody as the 1,000 hp SW1000, but has two exhaust stacks for its 12-645 engine and a larger radiator section. Under the hood, the SW1500 has a 12-cylinder, 1,500 hp 645E engine. The switcher was offered with Association of American Railroads type A switcher trucks or Flexicoil trucks for road switching; more than half were built with the latter.
Southern Pacific was the leading purchaser of SW1500s with 240. Other owners included Alton & Southern, Burlington Northern (BN), Kansas City Southern, Louisville & Nashville, Penn Central, Pittsburgh & Lake Erie, Reading Co., Southern Ry., and St. Louis-San Francisco (Frisco). Though switchers are being phased out by Class 1 railroads, many SW1500s are still earning their keep with leasing companies and short lines, and as industrial switchers.
Burlington Northern had 71 SW1500s on its roster. The railroad’s fleet started with 10 ex-Great Northern units built in September and October 1967. In January 1973, BN ordered 15 more units, including no. 319. The remainder were built for the Frisco between October 1968 and January 1973 and folded into the roster following the 1980 merger between the two railroads.
The Ready-to-Roll SW1500 features many upgrades from the original blue box version. The formed steel wire railings and stamped stanchions have been replaced with prototype-specific acetal plastic handrails. The model now has factory-installed and painted wire grab irons. In addition, the clear styrene window insert has been replaced with flush-fitting glazing.

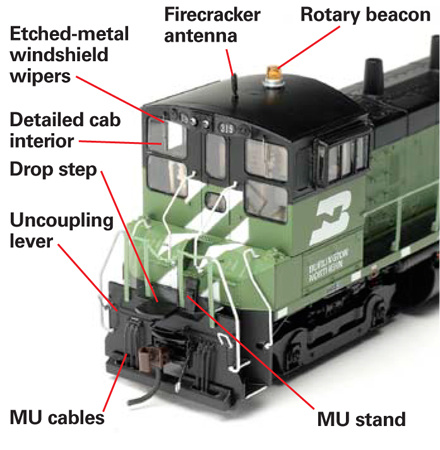

Our sample also has many BN-specific features, including a rotary beacon and firecracker antenna on the cab roof, a three-pane all-weather window on the engineer’s side of the cab, an 1,100-gallon fuel tank with filler necks on both sides and a flush-mount gauge on the engineer’s side, and m.u. stands on the front and rear pilots. Oh, and the giant lightbulb in the cab from the blue box days is gone. It has been replaced by a detailed and painted cab interior. Though crew figures aren’t included, they’d be easy to add.
Small lettering is legible, including FIRE EXTINGUISHER INSIDE, DANGER 600 VOLTS, and FUEL CUT-OFF. In addition, the sill has the SW1500 and Northtown stencils, the latter indicating the locomotive was assigned to BN’s terminal in the Twin Cities. The placement of the stencils matches prototype photos of no. 319 at rrpicturearchives.net.
Though the model is well painted, I was disappointed with the quality control. The etched-metal radiator grill didn’t seat properly on the engineer’s side. Upon closer inspection, I noticed a blob of glue on the shell where the factory tried to reattach the grill. There was also a glue stain with a fingerprint on the road number. Some of the white paint had flaked off the vertical handrails on the cab end, revealing brown plastic.
The motor is seated over the fuel tank, as before. However, a PC board is now mounted above the motor. The model also has a nine-pin socket for those wishing to convert the model from
direct current (DC) to Digital Command Control (DCC).
The SW1500 has directional headlights. The headlight openings are still sized for the clear lenses used with the blue box model, so they’re a bit oversized for the bulbs. Curiously, the rotary beacon only illuminates when the locomotive is moving forward. On the prototype, the beacon stayed illuminated regardless of direction.
In addition to the “standard” SW1500 shown here, Athearn also offers a version detailed to match the Southern Pacific prototype, which has distinct front and rear headlight clusters and cab-mounted number boxes.
Except for the glue and handrail issues, Athearn’s upgraded SW1500 looks good and performs well. Though end-cab switchers aren’t as prominent as they once were, you can still enjoy operating them on your model railroad with this HO scale model.
Manufacturer
Athearn Trains
2883 E. Spring St., Ste. 100
Long Beach, CA 90806
athearn.com
Road names (three numbers per scheme): Burlington Northern, Alton & Southern, Canadian National with Wisconsin Central reporting marks, and NASA
Era: July 1966 to present
Features
- Correctly gauged metal wheels
- Detailed cab interior
- Nine-pin socket for Digital Command Control decoder
- McHenry knuckle couplers, mounted at correct height
- Separately applied wire grab irons
- Weight: 8.7 ounces
