Walthers HO scale transfer table

An operating transfer table is now part of the Cornerstone Series Built-Ups line from Walthers. The motorized plastic model also features operating lights.

Common at railroad back shops, a transfer table makes it possible for equipment to be moved laterally, eliminating the need for turntables and complex switching moves.

The Walthers transfer table has a 147/16″ x 151/16″ footprint, and the pit extension measures 1315/16″ x 151/16″. A paper template is included for cutting the pit opening.

For smooth operation, the pit needs to be mounted on a level surface. Approximately 11/8″ of clearance below the layout is needed to accommodate the pit and wiring.

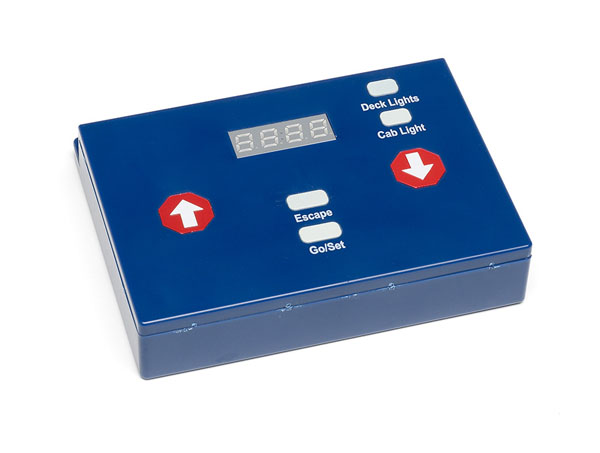

Setting up the transfer table for DC operation is easy thanks to the clear instructions in the 20-page transfer table manual. Once connected, the display on the control box reads Heljan, followed by the table’s digital address and the number of positions the table is indexed for. After I set the table on the rails, I calibrated the table’s 0 position following the instructions.

Then I programmed additional stops for the table. I scrolled through the menu options until Prog appeared. Next, I pushed the Go/Set button until Prog started flashing. I then used the up and down buttons to position the table. I pushed the up button once I had the table in its final position.
To save the position, I pressed the Go/Set button until the letter P appeared in the display window. I then used the up and down arrows to give the location its number. Pushing the Go/Set saves the location number.

With 48 positions, this transfer table can easily drop into an exist-ing scene. The pit lip is designed for Walthers code 83 track. However, track from other manufacturers can be used, if shimmed for matching railhead height.

Working accessories add realism to a layout, and Walthers new transfer table will do just that. This model will enhance any shop scene from the steam era to the present day.

HO scale transfer table
Price: #329.98; pit extension $69.98
Manufacturer
Wm. K Walthers Inc.
P.O. Box 3039
Milwaukee, WI 53201
www.walthers.com
Description
Motorized injection-molded plastic transfer table
Features
Bridge measures 100 scale feet
Compatible with Digital Command Control and Motorola
