Track plan at a glance Name: National Docks Ry. Scale: HO (1:87.1) Size: 12′-6″ x 17′-0″ Era: World War II Mainline run: 39 feet Minimum radius: 18″ Minimum turnout: no. 4 Maximum grade: none Originally appeared in the February 2007 issue of Model Railroader. See a PDF version of this track plan by clicking here. […]

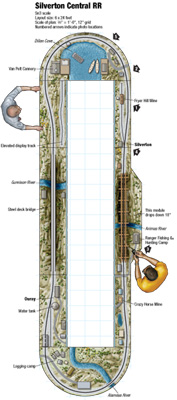

Track plan at a glance Name: Silverton Central Scale: Sn3 (1:64) Size: 6 x 24 feet Era: 1928-1935 Style: sectional Mainline run: 60 feet Minimum radius: 31″ Minimum turnout: no. 6 Maximum grade: level Originally appeared in the April 2007 issue of Model Railroader. See a PDF version of this track plan by clicking here. […]
Track plan at a glance Name: Algoma River RR Scale: On3 (1:48 proportion, three-foot narrow gauge) Size: 19½ x 22½ feet plus extension into workshop Prototype: free-lance Period: late 1920s, early 1930s Style: walk-in, walkaround Mainline run: 108 feet Minimum radius: 36″ (30″ on branch) Minimum turnout: approximately no. 4, handlaid to fit Maximum grade: […]
Track plan at a glance Name: Broak & Kantifordit Tie & Timber Co. Scale: On3 (1:48, three-foot gauge) Size: 11 x 11 feet Period: 1920s and ’30s Style: around the walls Mainline run: 55 feet Minimum radius: 22″ Minimum turnout: no. 6 Maximum grade: 7 percent Originally appeared in the 2002 issue of Great Model […]
Track plan at a glance Name: Carrabasset & Dead River Ry. Scale: HOn2½ (1:87) Size: 28 x 28 feet Prototype: free-lanced, based on Maine two-foot gauge prototypes Period: 1941 Style: around-the-walls walkaround Minimum radius: 18″ Minimum turnout: no. 5 Maximum grade: 3 percent Originally appeared in the September 1998 issue of Model Railroader. Click on […]
Track plan at a glance Name: C.W. North Logging RR Scale: On3 (1:48, 3-foot narrow gauge) Size: 2 x 16 feet Prototype: Pennsylvania logging railroads Period: 1930s Style: sectional Mainline run: 16 feet Minimum radius: 18″ Minimum turnout: no. 4 Originally appeared in the 2004 issue of Great Model Railroads. Also appeared in 102 Realistic […]
Track plan at a glance Name: Hessel & Lone Pine RR Scale: HO (1:87) Size: 13½ x 24 feet Prototype: free-lanced short line Period: 1930s Style: walkaround Minimum radii: 24″ Minimum turnout: no. 5 Originally appeared in the 1998 issue of Great Model Railroads. Click on the link to download a PDF of this track […]
Track plan at a glance Name: Kay Gee Canyon Line Scale: HO (1:87) Size: 14 x 25 feet Theme: fictional short line feeding the Pennsylvania RR Era: 1935 Style: walk-in Minimum radius: 24″ Minimum turnout: no. 6 Maximum grade: 2.5 percent Originally appeared in the 1998 issue of Great Model Railroads. Click on the link […]
Track plan at a glance Name: Lorigan Lumber Co. Scale: HOn3 (1:87) Theme: free-lance narrow gauge logging railroad Period: late 1930s Style: walkaround shelf Minimum radius: 18″ Minimum turnout: no. 4 Maximum grade: 3.5 percent Originally appeared in the July 1998 issue of Model Railroader. Click on the link to download a PDF of this […]
Track plan at a glance Name: Montandon Branch Scale: N Size: 2 x 4 feet Minimum radius: 9¾’ Minimum turnout: no. 5 Originally appeared in the 2002 issue of Great Model Railroads. Also appeared in 102 Realistic Track Plans. Montandon Branch […]
Track plan at a glance Name: Northern Timber Co. Scale: HO Theme: logging with Shay locomotives Period: 1925 to 1930 Style: modular Minimum radii: 32″ (main line), 26″ (logging line) Minimum turnout: no. 6 (main line) and no. 4 (logging line) Maximum grade: 2 percent Originally appeared in the 1997 issue of Great Model Railroads. […]
Track plan at a glance Name: Reading Co. Scale: HO (1:87) Size: 2½ x 17½ feet (city scene) Theme: urban industrial switching Period: late 1930s, early 1940s Style: shelf with backdrop Minimum radius: 36″ (main line) Minimum turnout: no. 6 on main line; no. 4 for industrial sidings Originally appeared in the 2003 issue of […]
