In May 2015, the FRA and the Pipeline and Hazardous Materials Safety Administration jointly released a final rule for tank car standards and operations controls. On Sept. 28, the FRA put the new car design through its paces with a side impact test at the research center.
“Previous tests on the DOT 111 and 112 cars provided information for the design of the regulations,” says Francisco González III, tank car and hazardous materials project manager with FRA. “Today we’re going to get information on how the DOT 117 tank car performs and put that back into the model.”
FRA tasked representatives from the John A. Volpe National Transportation Systems Center of Cambridge, Mass., with modeling and analysis.

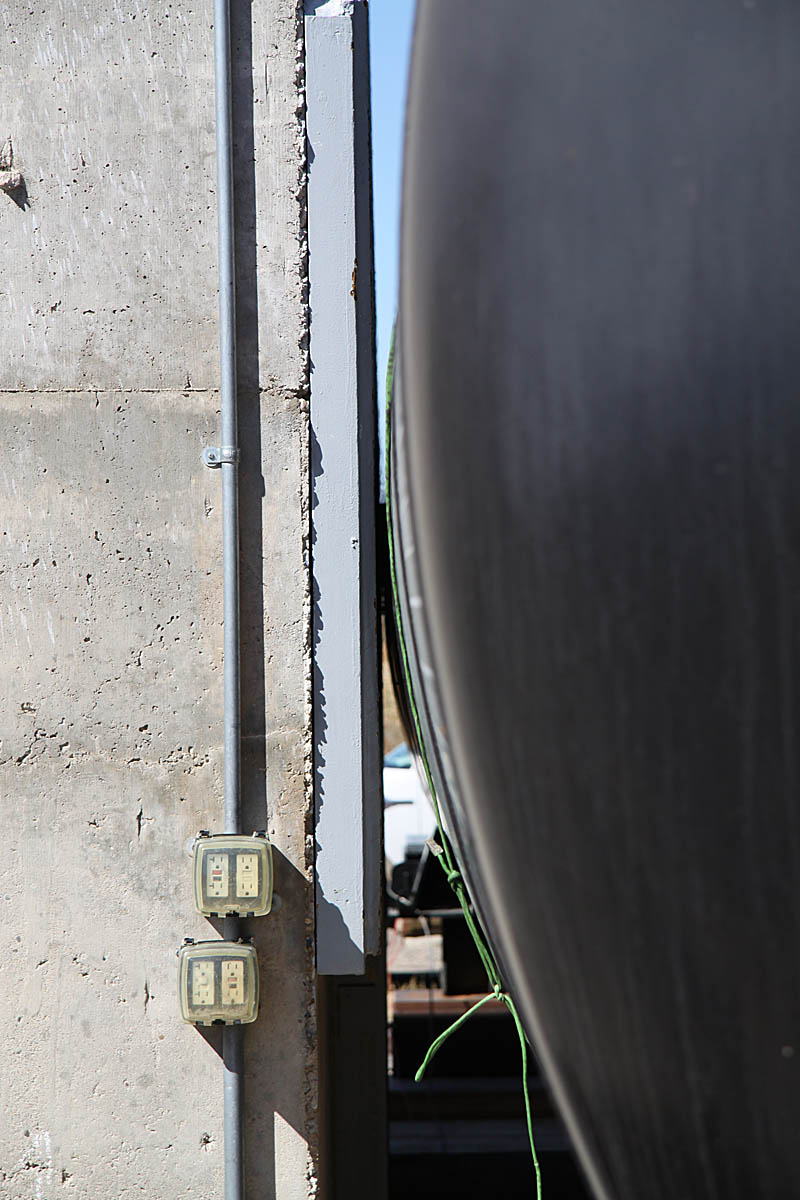

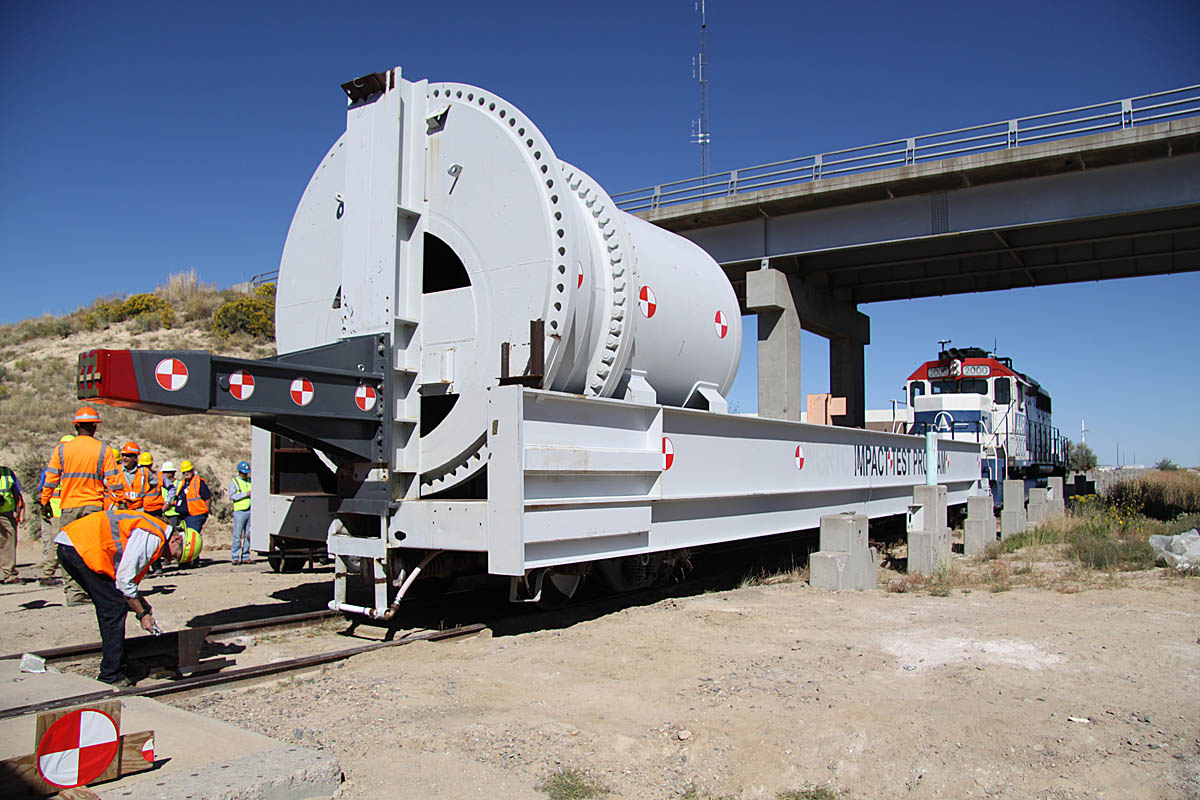

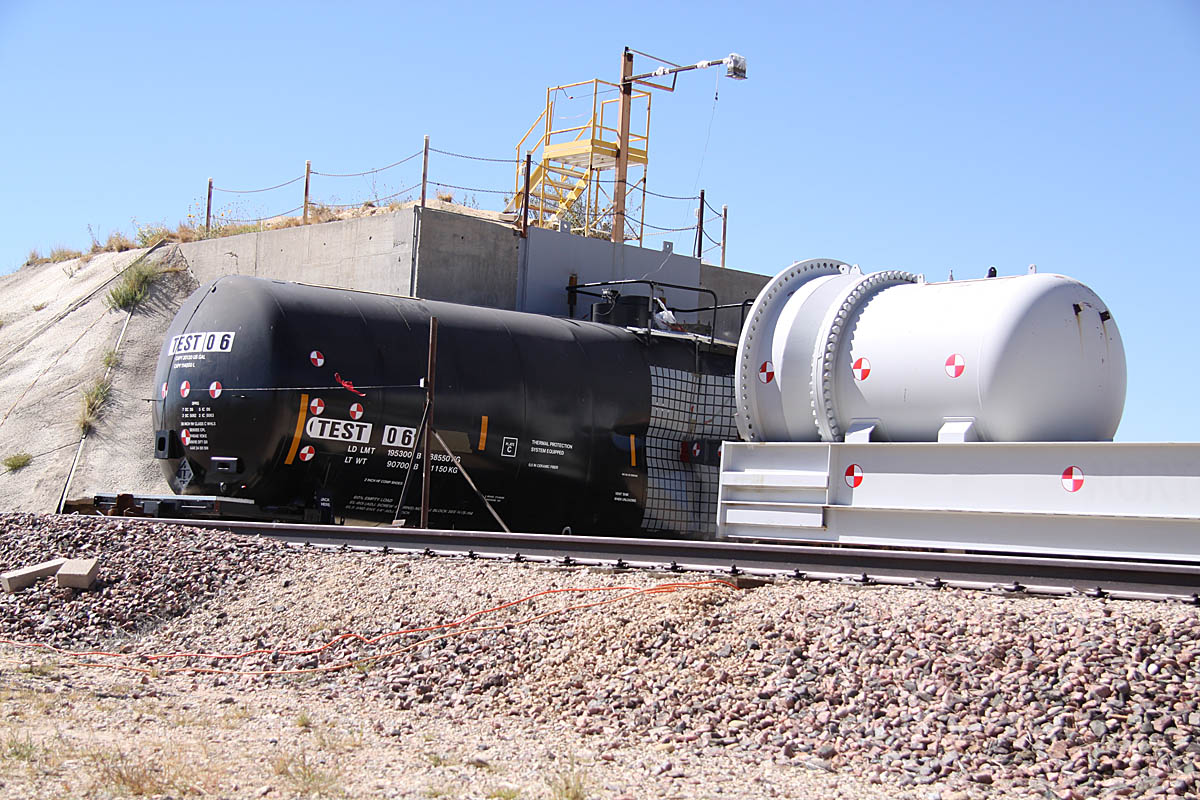

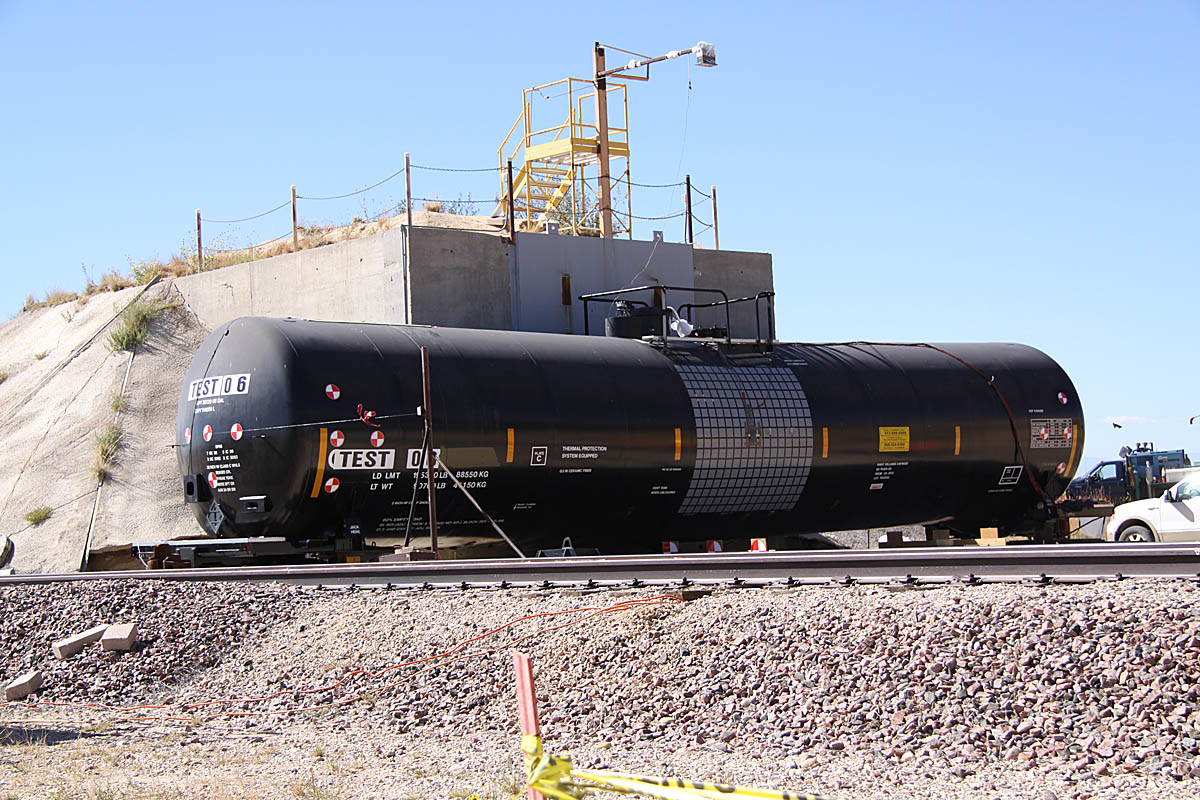

In preparation for the test, TTC personnel had removed the car’s trucks and mounted it on a support nearly flush to the facility’s impact wall. One of TTC’s test locomotives, AAR 2000 (a GP40-3) was coupled to a flatcar modified into an impact car with a 12 by 12-inch ram.

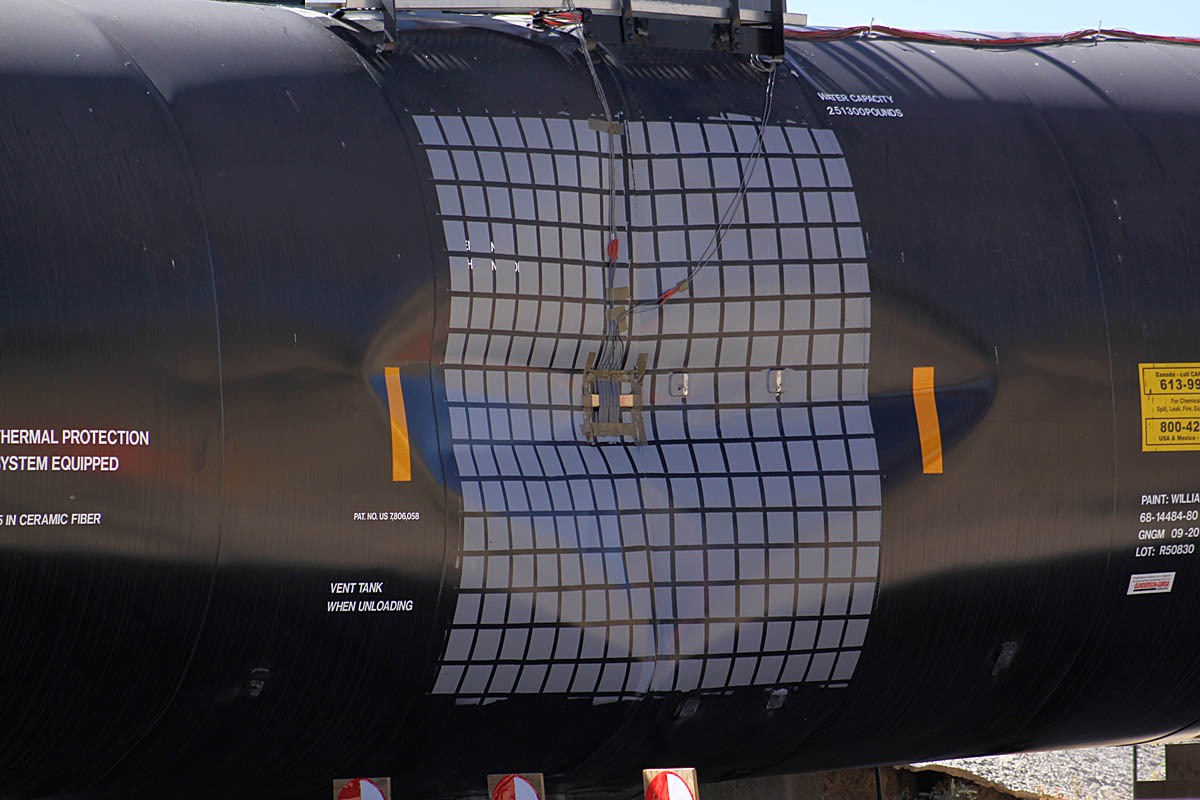

At the appointed time, the impact car accelerated downgrade to the target 13.5 mph and rammed the impactor into the broad side of the tank car, which was fitted with a wide array of sensors.

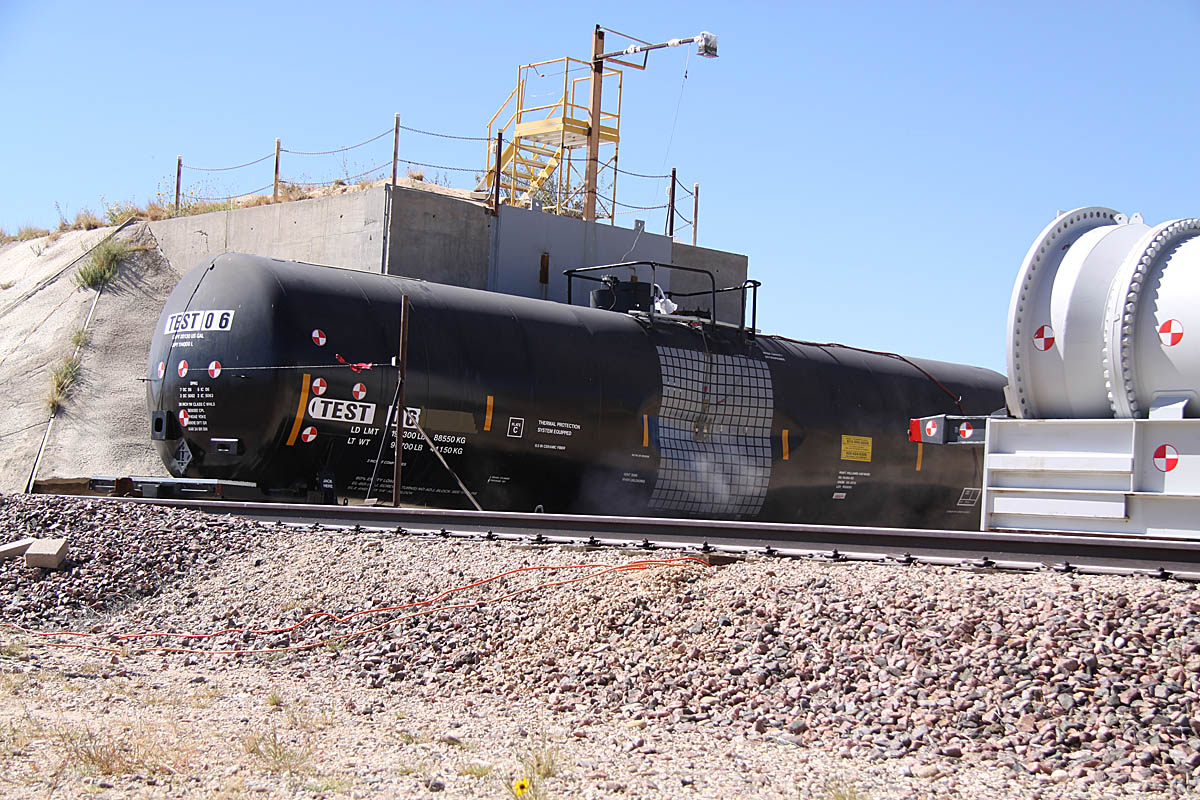

The impactor hit the car, sounding like a cross between cars coupling hard and an auto crash. As expected, the roundness of the cylindrical car morphed into an oval as the impactor pushed into the car, which itself was pushed backward into the wall then rebounded pushing the impactor back toward its origin.
Despite being on a downgrade, the impact car did not roll back toward the tank car again because its air hose had been extended with a PVC pipe. A fraction of a second before the impactor hit the tank car, a large piece of metal installed between the rails broke the pipe, activating the impact car’s brakes.
Dust rose from beneath the car as it resumed a near-cylindrical shape, albeit with a large dent.
Prior to the test, the car was filled with water with a 5 percent outage. Immediately following the test, TTC personnel approached carefully to be certain the tank had not breached and retrieved their high-speed cameras. After they ascertained the site was safe, observers were permitted to return to the car for a closer look.

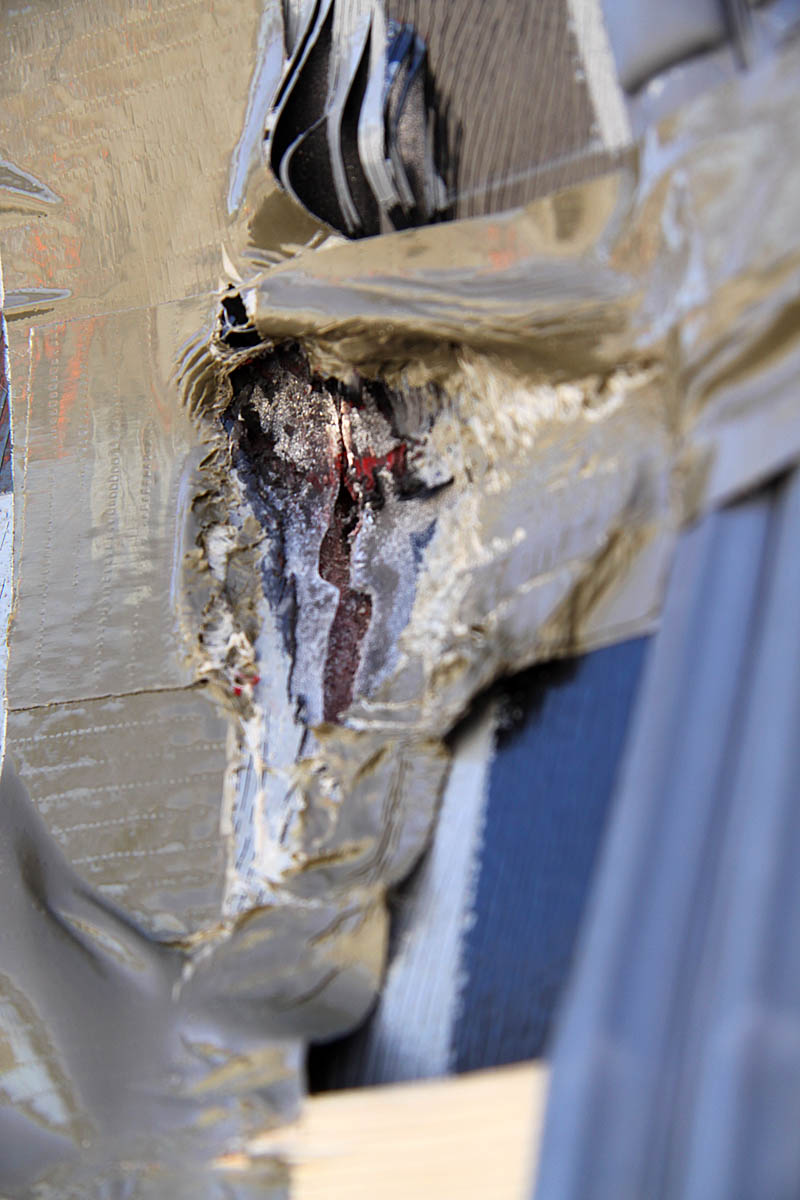

After sufficient time to look at the damage to the jacket, researchers and observers returned to a conference room for a debriefing while TTC personnel removed the car’s jacket and thermal protection for a better look at the tank itself.
“The crash-worthiness range for this test, according to analysis performed by Volpe, was between 13 and 14 mph,” says González. Therefore, FRA decided to run the test at 13.5 mph. “The actual speed was 13.6, according to preliminary analysis. … The impact deformed the car but did not puncture it, so it agreed pretty well with the model.”

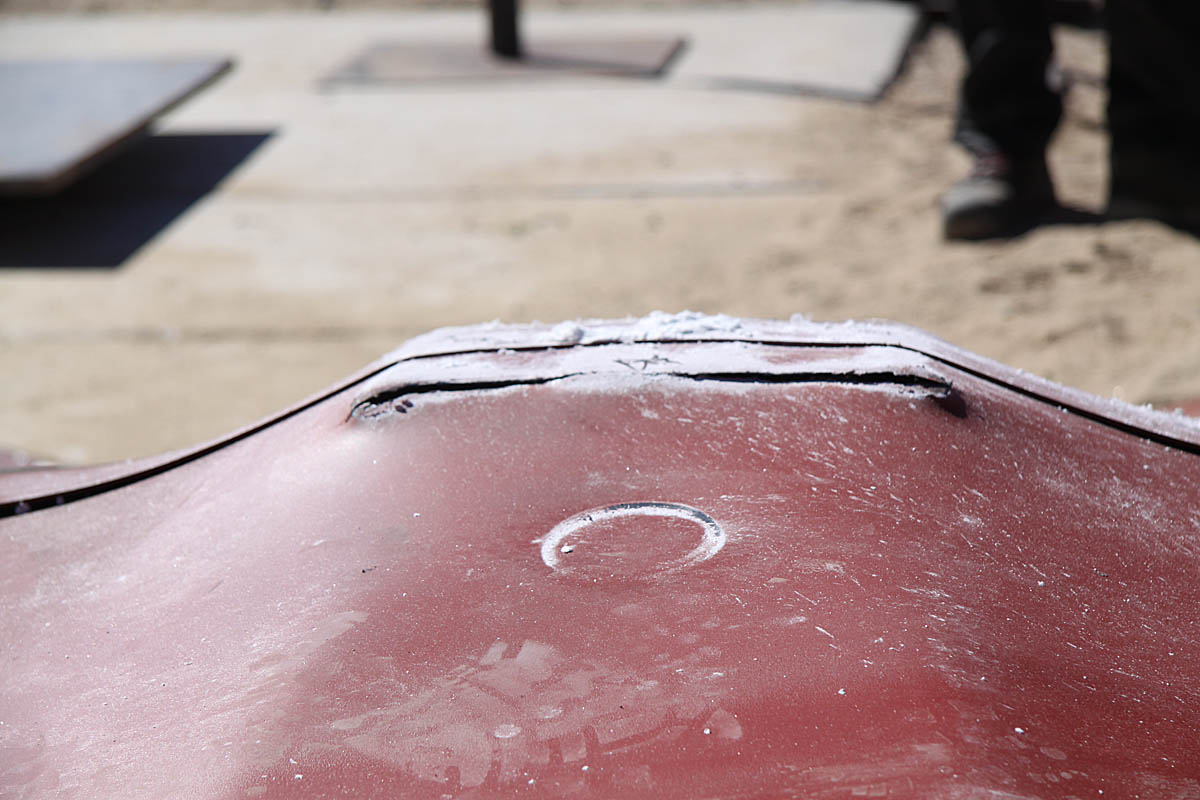

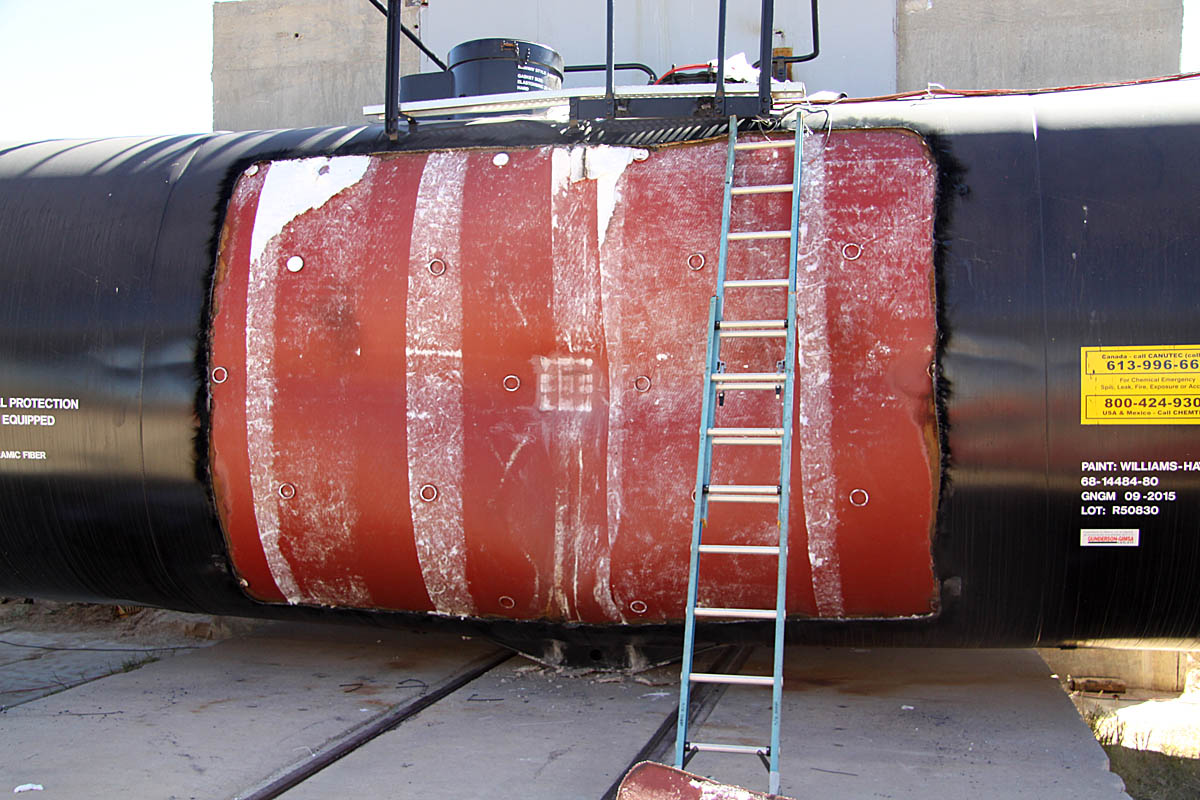

Once the jacket was removed, we returned to the impact wall. The jacket, now removed, laid on the ground, clearly deformed. While the dent to the tank was clearly deep, its integrity was intact.

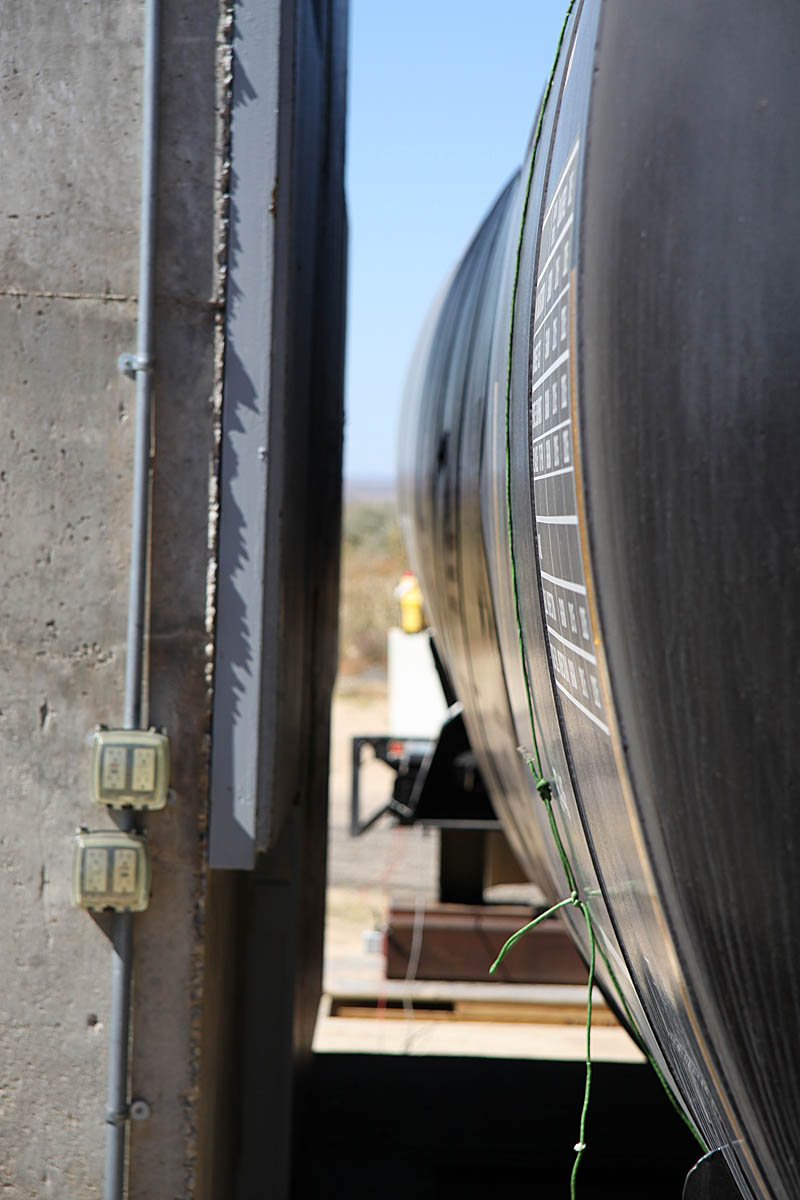

Post-test, the tank car rested several inches from the impact wall. It also had noticeable dents to the back, although not nearly as deep as the point of impact. There was also evidence that the car slid significantly on the skids upon which it rested.

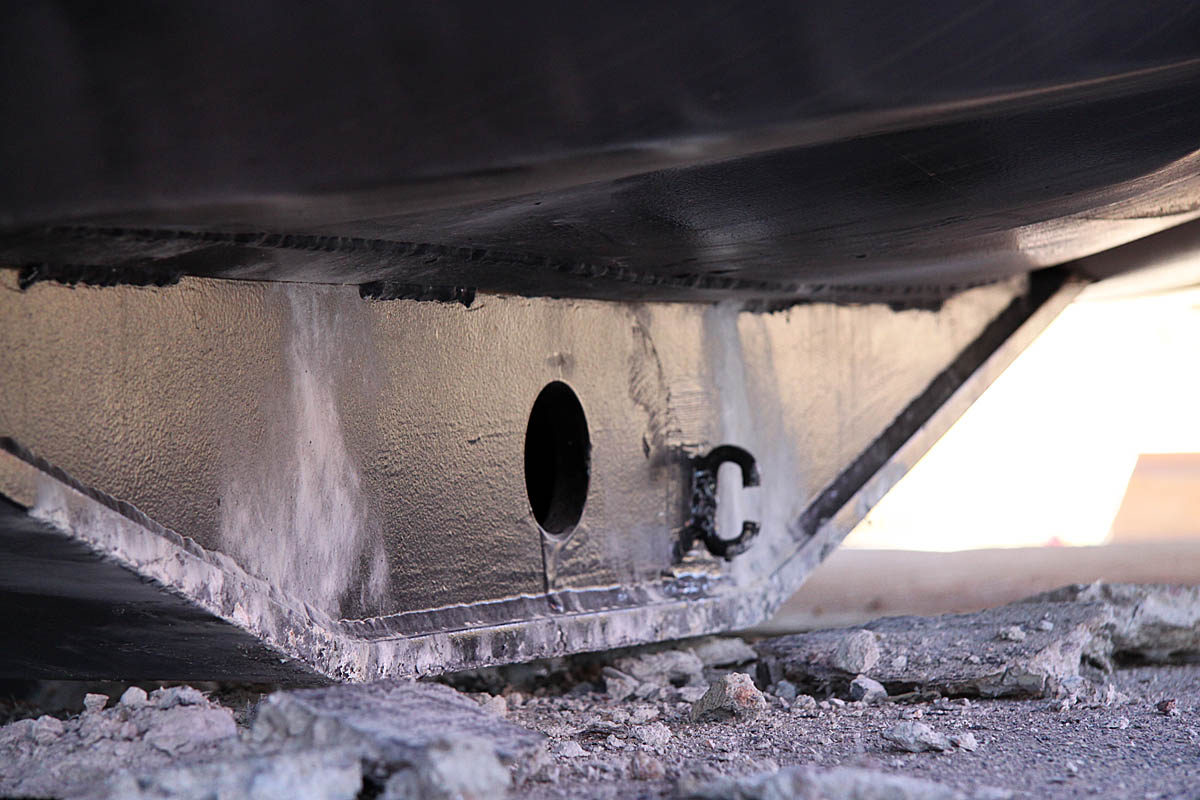

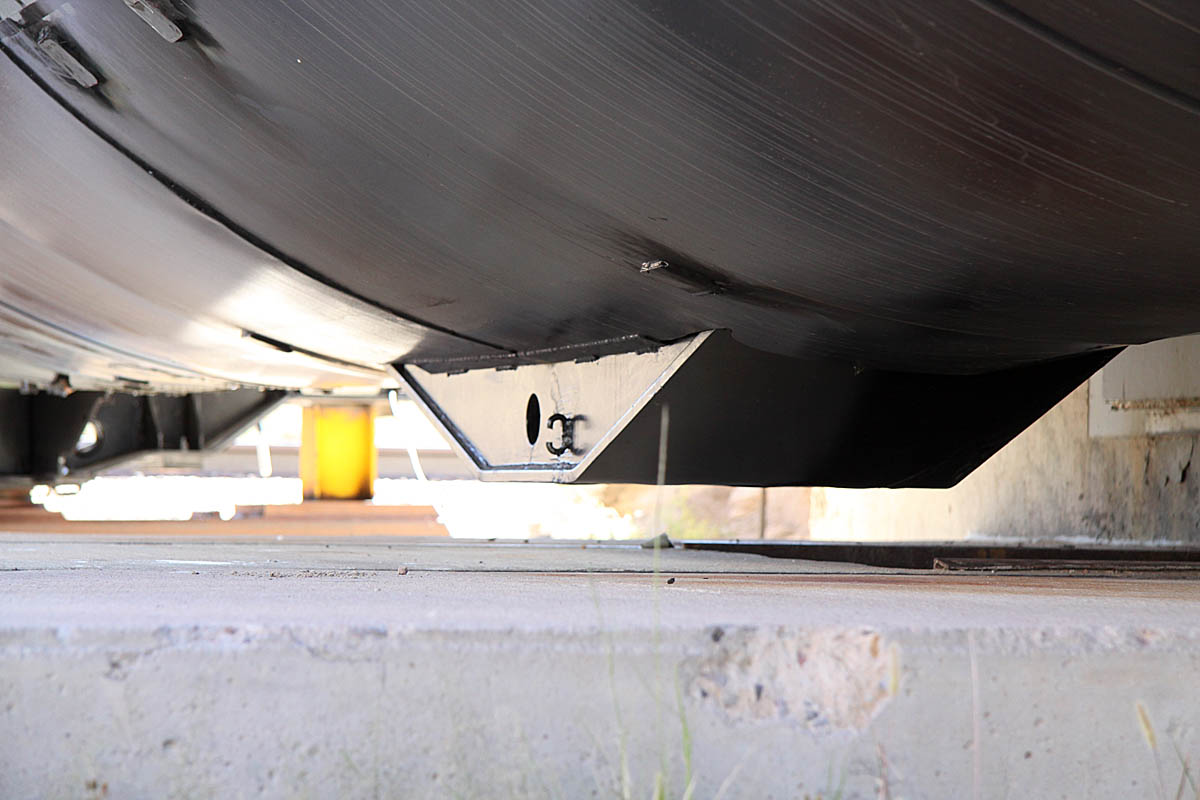

The dust that arose from the car following impact came from a concrete slab beneath the car. It appears that as the car ovalized, or as the cylindrical shape was squished into an oval shape, the bottom outlet valve’s skid protection rammed into and scraped along the slab. Prior to the test, the skid protection had a few inches’ clearance; post-test, it rested in rubble.
Researchers plan to take small samples, or coupons, of the shell to send for metallurgical analysis. Final results will be available in several months, and researchers at that time will decide if they need to do additional tests on the DOT 117.
However, some results will be published on FRA’s website by year’s end.
UPDATE: Clarification in glossary terms. Oct. 18, 2016, 11:04 a.m. Central time.
Interesting article, although I await the final results, as they will be much more informative.
If you want to really hear the English language (or American language, whichever) brutalized, sit in a courtroom where ordinary people argue their cases, like traffic court or small claims court.
Ilearnedmorefromthecommentsthanthearticle.

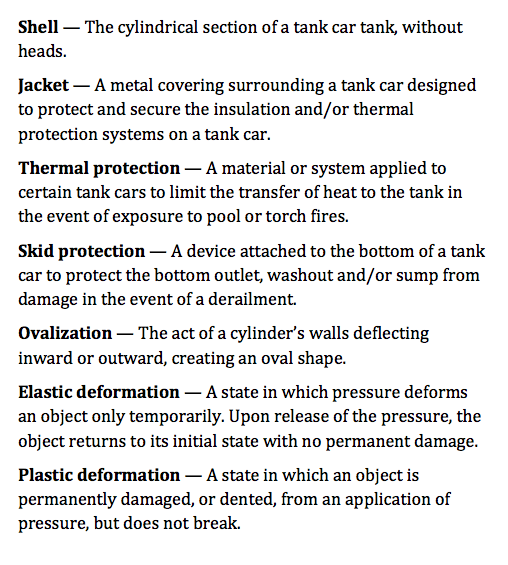

For all the language police, did you read the Tank Car Glossary?
