The answer, it Wabtec officials seem to say, is by creating an all-electric unit that can be mixed into a consist with existing conventional diesel-electric power.
That’s the idea behind the battery-electric locomotive, branded as FLX Drive, that Wabtec is now building for a test on BNSF Railway routes in California. The locomotive is expected to be delivered in late 2020 and begin testing in early 2021 on a 350-mile stretch of the BNSF between Stockton and Barstow, Calif.
“Really what we said is, ‘Hey, we’re interested not in impacting fuel consumption on a single locomotive, but how do we do it in terms of a consist?’” said Wabtec’s Dennis Peters, executive locomotive platform leader. “Because because that’s how, in North America, locomotives are operated. But we don’t want to touch every locomotive in the consist; we’d like to touch just one locomotive. So the concept for the battery-electric locomotive was born.”
The unit is being built on the core of a Tier-2 locomotive that GE Transportation previously used for liquified natural gas testing. It will use lithium-ion batteries already used in automotive applications — although it will take a whole lot more of them to power a 430,000-pound, 4,400-hp locomotive than it does to move your average Prius. Approximately 20,000 battery cells will be mounted in 20 racks of batteries in the back half of the locomotive.
Peters has been involved in the project for years — before the 2018 merger of Wabtec and GE Transportation — but GE’s interest in hybrid locomotives goes back decades, Peters says. Only now, though, has the combination of battery technology and computer programming made the project truly feasible. GE’s Trip Optimizer software — the autopilot-like program that handles throttle and braking for more efficient train movement — is as crucial to the battery-electric locomotive as the batteries.
“What we focused on is, ‘How do I put a significant amount of energy storage on that, but now smartly operate the train, to be able to maximize fuel or emissions savings, based on what we’re trying to achieve?’ ” Peters says. “By having that knowledge of what’s ahead in the route, we can now smartly charge or discharge energy. And that is a two to three times multiplier of the amount of fuel savings versus just throwing batteries on a locomotive.”
The locomotive’s initial test, planned for about 90 days, will be in California because approximately half of the more than $30 million cost of developing the first battery-electric is being funded by a grant from the San Joaquin Valley Air Pollution Control District. Wabtec estimates that the introduction of the battery-electric locomotive will bring fuel savings of 15 to 20 percent to the entire multiple-locomotive consist.
“We’ll be looking for fuel-consumption improvement … correlation to emission savings, because that’s an important component in California, and then we’ll be doing some yard operations as well,” Peters says.
The locomotive can be charged both by plugging into a charging station — estimated charge time will be 4 to 8 hours — or through the regenerative energy of dynamic braking. It will have a fully equipped cab and will be able to operate independently — the estimate is that it could run on its own at full power for about 45 minutes — but the testing will focus on its use in a multi-locomotive consist, and it is envisioned that, in testing, it will be the second locomotive in that consist.

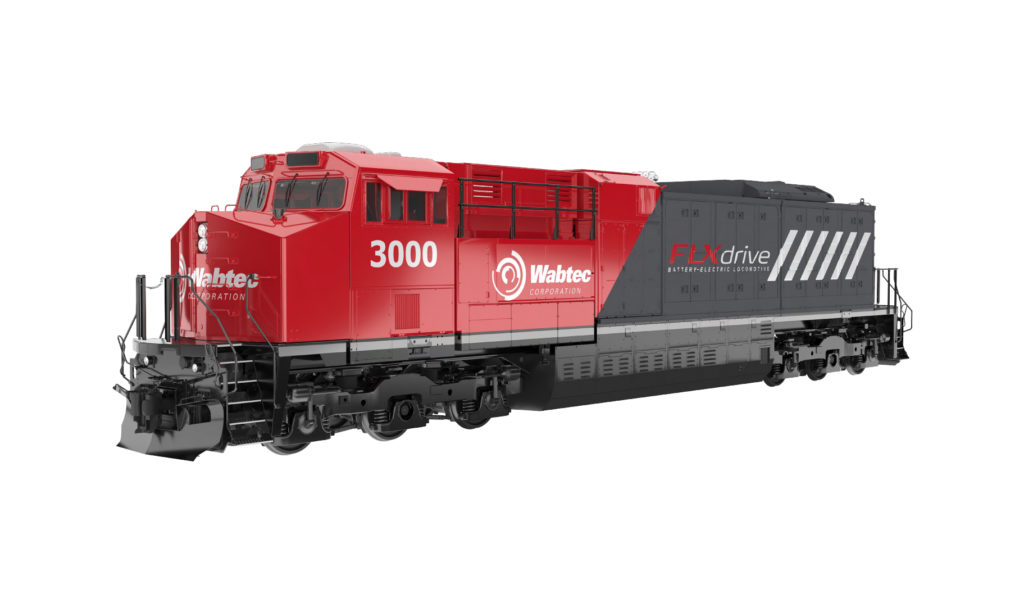

The unit is not expected to look substantially different than current GE locomotives — “We’re trying to leverage as much of the existing Evolution-series locomotive as possible,” Peters said — but it will not be difficult to spot. Wabtec plans to paint it in the red-and-gray scheme shown in the renderings and videos released this week.
“You’ll be able to know it’s different just by looking at the back half,” Peters said, “but it will still look like a locomotive.”
Beyond the test, Peters said, it remains to be determined how much battery storage will be ideal for such a locomotive, and even exactly a production model’s best appeal to the market will be. In addition to being used to save fuel, it could be used to produce zero-emission miles where the diesel units are taken off lone and the battery locomotive carries all of the power load. Or it could be used to boost power and increase the speed of a train.
“There are all different ways you can go with this,” Peters said. “… That’s part of the flexibility, hence the name FLX Drive.”
Hopes are high for the potential of the unit, and the concept.
“Only time will tell in terms of how big of an advancement [it is],” Peters says. “You think about steam and the movement away from steam. We’ll see how much juice we can get out of this. But I think the timing’s right to do it now. …
“There’s a lot of excitement around looking at this technology and what it can potentially do. And as a new company, this is a big deal for us.”
