Rollover Tank Car Test

By Angela Cotey | December 23, 2009

| Last updated on November 3, 2020


In November 2009, FRA and Sharma & Associates tested a possible option to improve tank car safety

Email Newsletter

Get the newest photos, videos, stories, and more from Trains.com brands. Sign-up for email today!

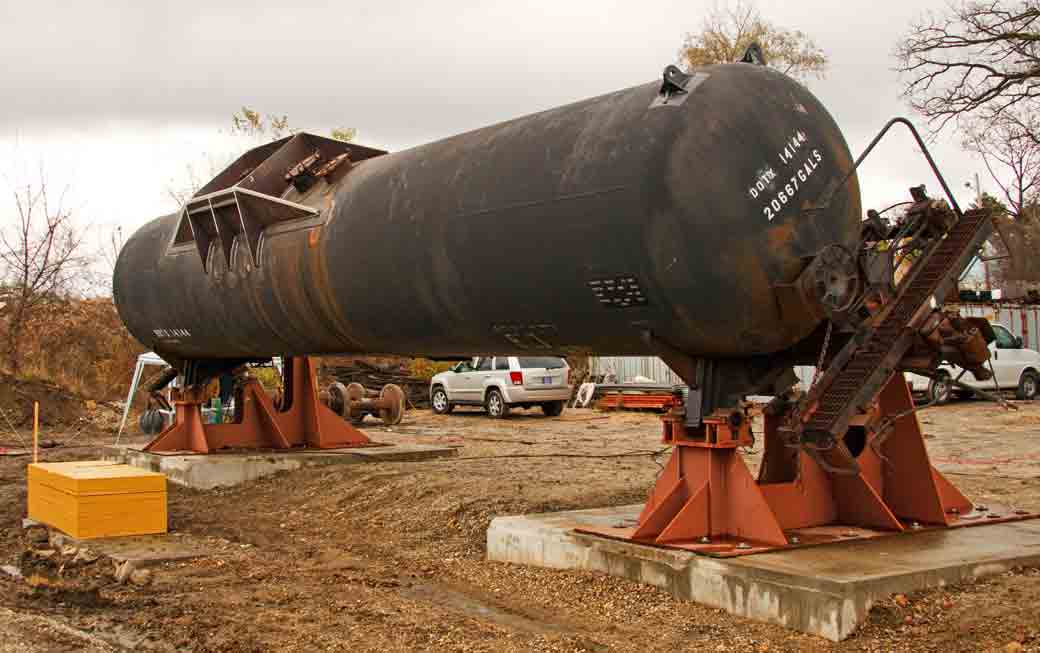

2009 tank car test set up
RIS removed the trucks from a donated tank car, attached it to supports bolted onto concrete slabs, and filled it with water. The yellow block in the lower-left of the frame is layers of concrete. Researchers expected the top layer or a few would be destroyed, but hoped that the bottom of the block might be reusable.
Kathi Kube

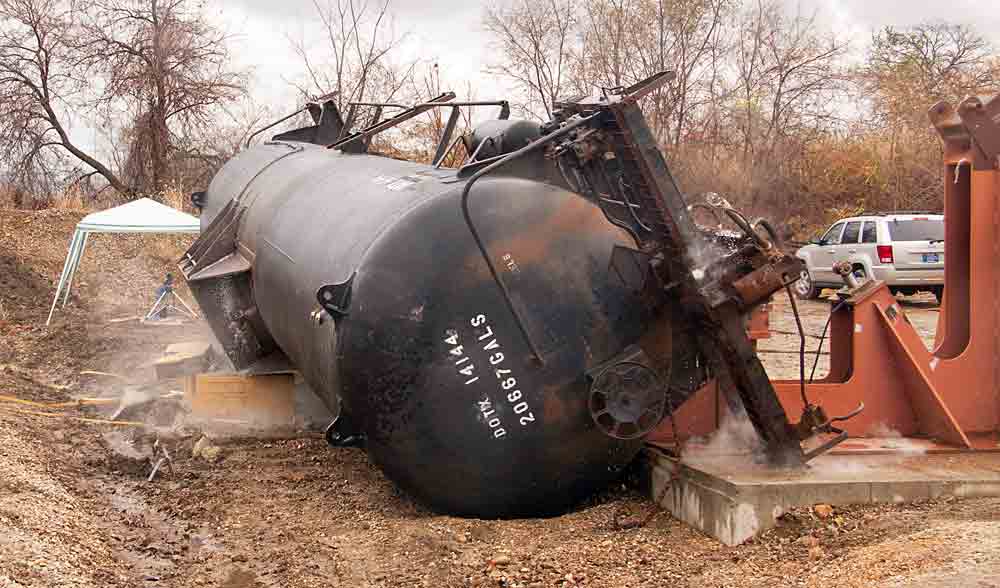

bolster breaks during tank car rollover test
As the tank car settled onto the ground, one of its bolsters succumbed, as well, creating its own dust as it broke free from its steel supports and landing on the support slab.
Kathi Kube

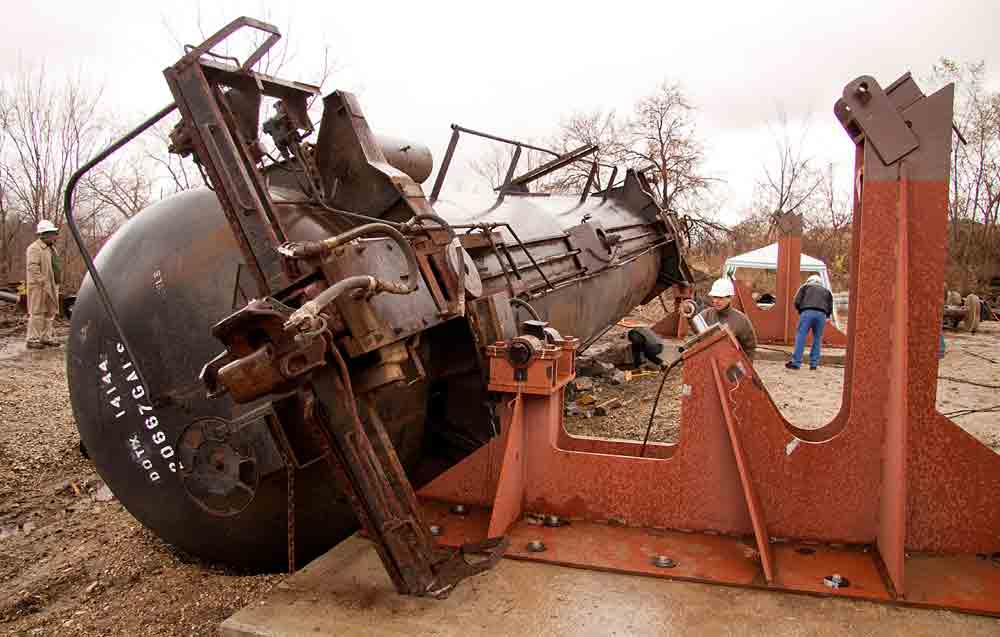

Broken bolster on tank car during rollover
The bolster on the near end of the car didn’t fare as well, breaking cleanly from the rest of the car. This didn’t impact the test’s results, though, and is somewhat expected when conducting tests on older equipment.
Kathi Kube

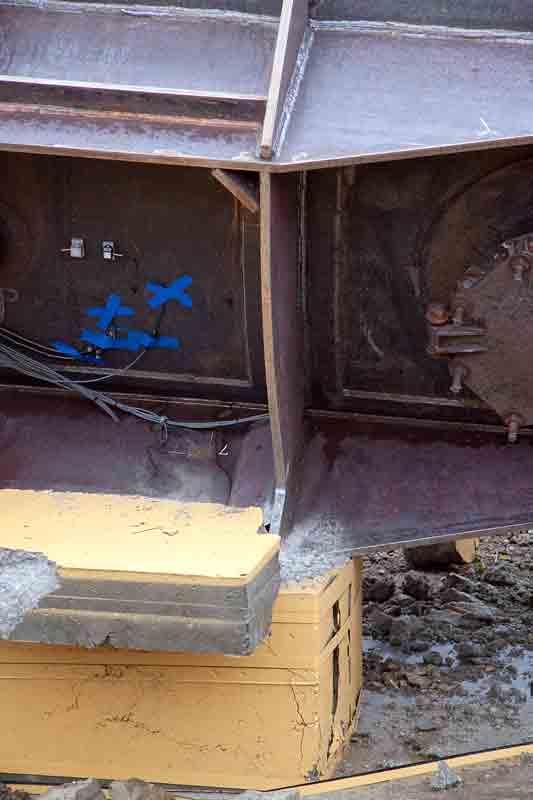

Damage to skid on tank car
Closer examination reveals a minor bend to the skid. The fittings themselves were completely protected from the 18-mph impact.
Kathi Kube

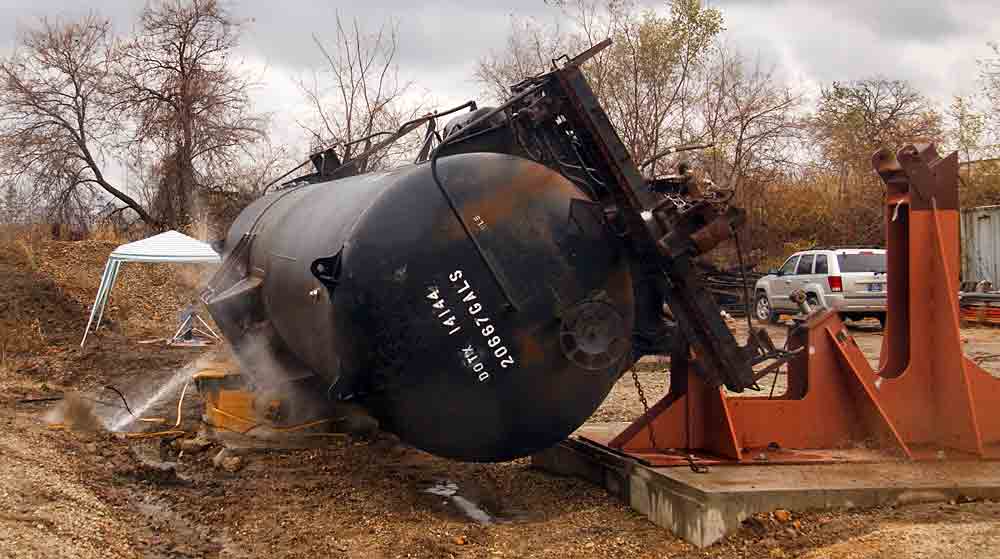

Safety valve on tank car during rollover test
Upon impact, the safety valve performed exactly as designed and relieved the sudden increase in pressure by spraying a small amount of water onto the already muddy ground. Dust flies up from the concrete block as layers are crushed beneath the loaded tank car’s weight.
Kathi Kube

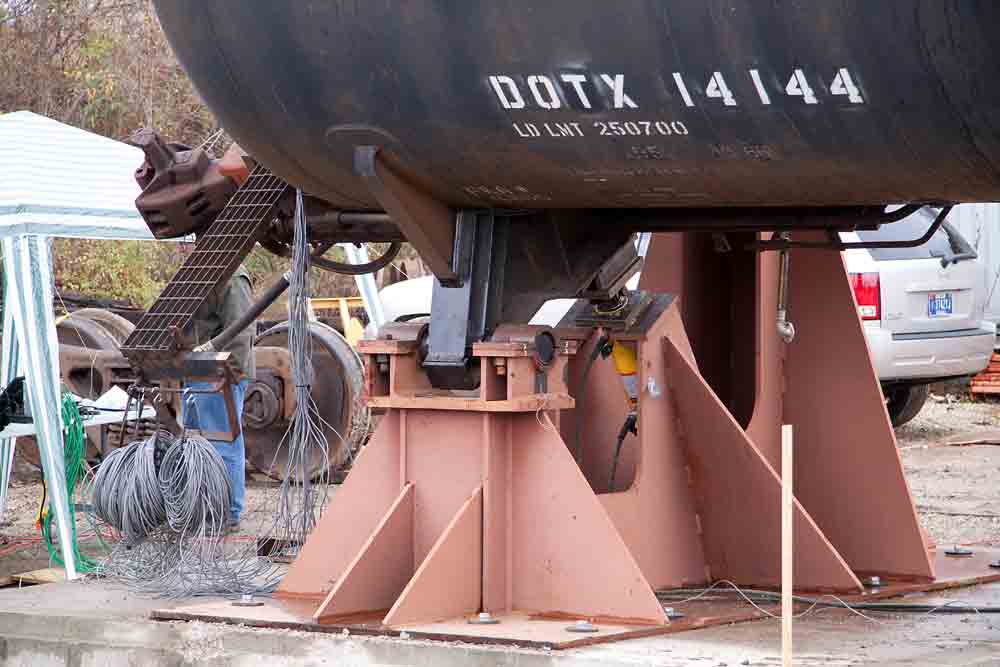

Supports and cables for tank car rollover test
RIS also designed and built a support structure for the tank car. Hydraulic pumps (yellow and visible within the support structure) pushed the car to its tipping point, at which time gravity took over.
Kathi Kube

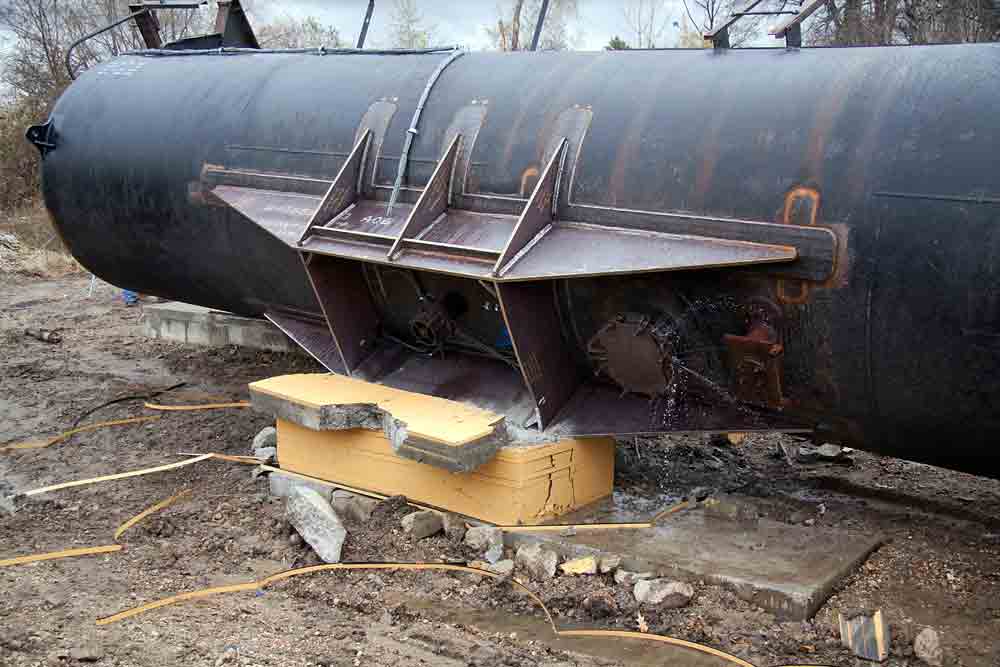

Tank car rollover test
When the dust settled and researchers were confident it was safe for the observers to come out from behind our protective barrier, the sight was impressive. The concrete blocks were broken, as was the slab they sat upon. The manway cover, not tightened since the tank car was filled for fear the water might freeze overnight, leaked some water, but was not damaged even though it technically was outside the most protected zone. In fact, none of the fittings were damaged in the least, and even the skid itself bent a tiny bit.
Kathi Kube

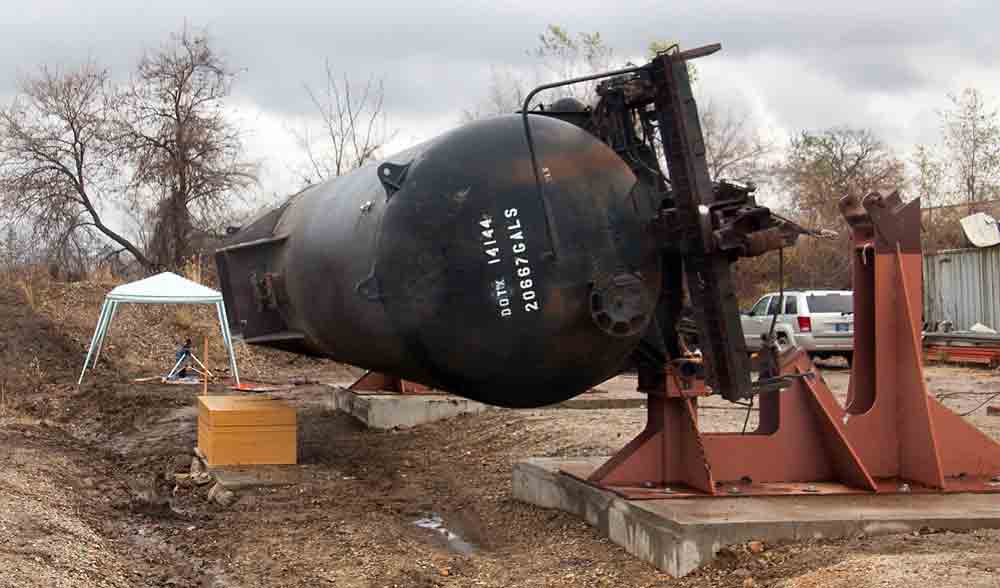

Tank car rollover test
The hydraulics have done their work, and gravity is taking over. One of the cameras opposite the car records the action.
Kathi Kube

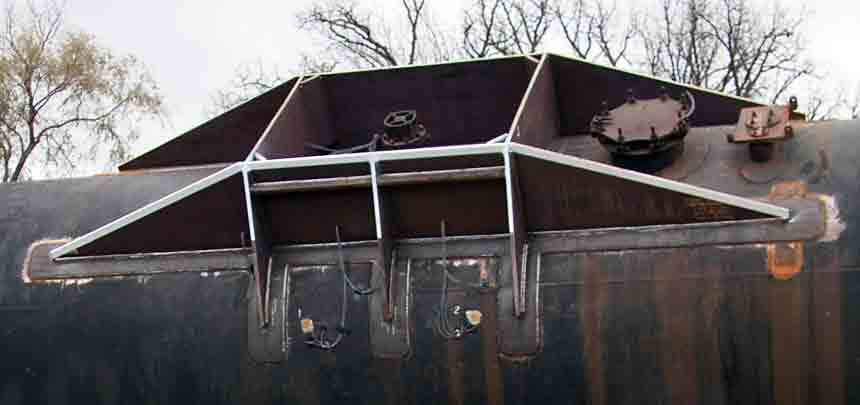

Tank car skid protection
This is a closeup view of the skid protection. Although the manway and one of the fittings is outside the rectangular protected area, modern designs put all the top fittings within the protected zone. Engineers from Sharma & Associates acquired the steel, designed the skid, and tested it in simulations. RIS personnel welded the actual pieces onto the car and provided the testing facility. Researchers also applied sensors and wires to various parts of the tank car and skid to monitor stresses as it impacted with the concrete slab.
Kathi Kube

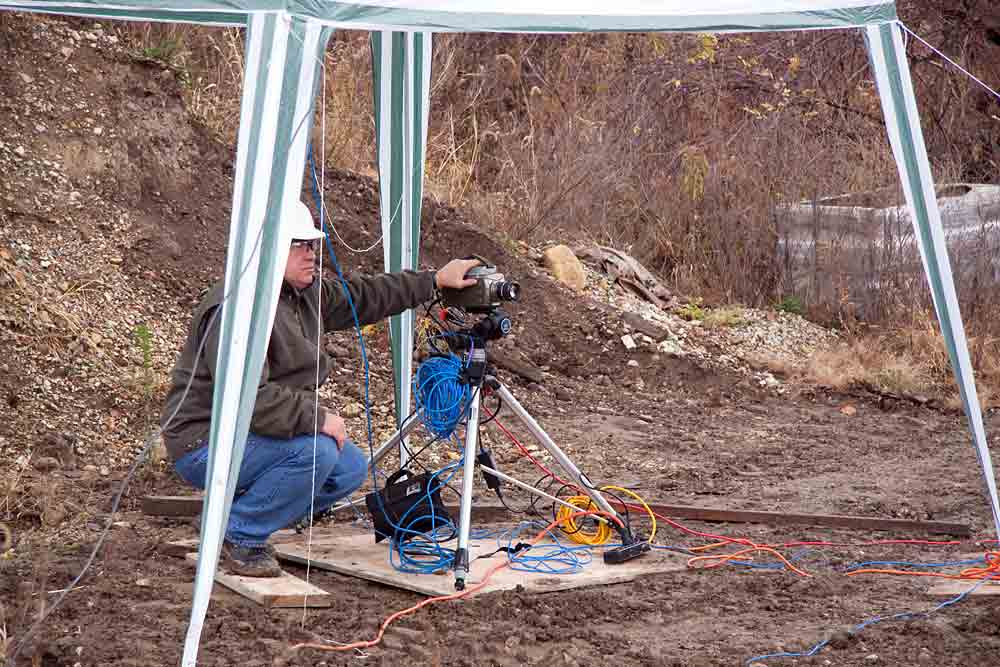

Video cameras for tank car rollover test
Several cameras recorded the action in real-time, and in slow-motion, and in wide-angle and zoomed-in views.
Kathi Kube

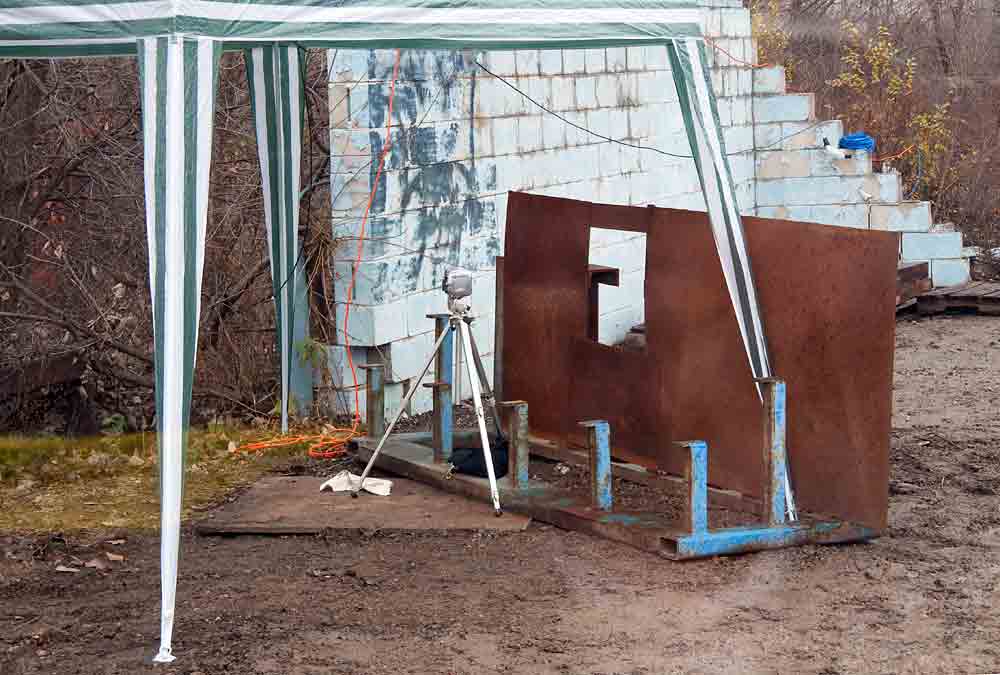

Video cameras for tank car rollover test
The camera closest to the action was behind a barrier in hopes that any flying debris would not damage the equipment. Observers also were kept well distant from the tank car and behind a steel barrier fitted with bullet-proof glass. Fortunately, no debris came anywhere near any of the observers.
Kathi Kube
Everyone involved in the transportation of hazardous materials knows that the quest to improve tank car safety in case of a wreck or derailment is very real, and ongoing. Usually we on the outside don’t get to go behind the scenes and see the research that goes into significant changes in railcar designs. But in recent months, TRAINS has been allowed to observe tests as the Federal Railroad Administration’s Office of Research and Development works with engineers throughout the country seeking possible solutions.

In November, FRA and Countryside, Ill.-based engineering firm Sharma & Associates Inc. hosted a full-scale test at Joliet-based Railway Industrial Services Inc. In general, researchers wanted to see if “skid protection,” that is, a steel bracing welded around a tank car’s top fittings, would protect the fittings in case of a rollover. The test confirmed researchers models and expectations.

The photos (right) show how it all happened.

Although researchers are far from saying, “Here’s this wonderful solution, please incorporate it into your new cars,” they are optimistic this is a viable option worthy of additional research. On the plus side, the skid was not difficult or overly expensive to manufacture and could be retrofitted to existing cars. However, this particular design would likely interfere with personnel or equipment working with the tank cars, as well as filling or emptying them. Additional modeling then testing will seek to address this issue.

In the meantime, researchers have many more options they’re examining in their efforts to make tank cars and hazmat transportation safer. – Kathi Kube
